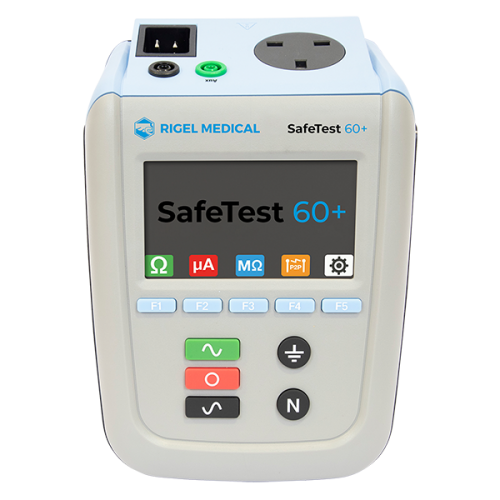

Rigel medical Safetest 60+ Entry-Level Electrical Safety Analyzer For Medical Devices (90-264V 48-64Hz.)

Earth Continuity

Pre-pulse: 2 wire ZAP technique.

Pulse Shape: Exponential Decay.

Decay Time: 200 – 550μs to 5% of peak (0.1 to 0.8Ω respectively).

Method: Wire.

Measurement Current: >± 200mADC into 2Ω.

Max Test Voltage: 4-24Vrms o/c.

Measuring Range (Low Range): 0.001 – 0.999Ω.

Resolution: 0.1Ω.

Measuring Range (Mid Range): 1.00 – 9.99Ω.

Measuring Range (High Range): 10.0 – 19.9Ω.

Accuracy: ± 1% of value, ± 5mΩ.

Circuit Protection: Test inhibited if ≥ 30VAC or DC at 4mm inputs.

Powered Leakage Measurements

Standards:

IEC 62353: Equipment Leakage (Direct).

IEC / AAMI 60601: Earth + Enclosure Leakage + Patient Leakage.

NFPA-99: Ground + Chassis Leakage + Patient Leakage.

IEC 61010: Touch Leakage, Touch Voltage.

Test Voltage: Mains Supply Voltage.

Measuring Range: 0.1 - 9999μA (0.1 - 8000μA typical for IEC 61010).

Measurement/Display Resolution: 0.1μA.

Accuracy: ± 2%, ± 5μA.

Mains Reversal: Soft Key.

Single Fault Conditions: Open Neutral and Open Earth Via Soft Key.

Frequency Response: IEC 60601 – 62353, NFPA-99, and IEC 61010 selectable.

EUT Load Current Measurement

Range: 0.0A – 20.0A.

Resolution: 0.1A.

Accuracy: ±5% ± 2 digits.

Insulation Resistance

Measurement: Point-to-point and EUT to Earth.

Voltage: 500VDC @1mA.

Maximum O/C Voltage: <600VDC.

Range: 100K – 100MΩ ± 5% ± 2 Digits.

Resolution: 0.01MΩ.

Short Circuit Current: <2mA.

Voltage Measurement

Application: L-N, L-E, N-E, and touch voltage (IEC 61010).

Range: 0.0V – 300VAC.

Resolution: 0.1Hz.

Accuracy: Unspecified.

Mains Frequency: 45.0 – 66.0Hz.

Power Source

Maximum Current Rating: 20A @ 120V / 16A @ 230V.

Duty Cycle (@21°C Ambient):

16A to 20A, 3 min. on / 10 min. off.

10A to 15A, 3 min. on / 5 min. off.

0A to 10A, continuous.

Mains Power: 90-264V 48-64Hz.

General Specifications

Weight: 1.1kg/2lbs (unit), 2.2kg/5lbs (complete with accessories).

Size (L x W x D): 225 x 150 x 100mm / 9 x 6 x 4”.

Altitude: 0 – 2000m.

Ingress Protection: IP 40.
