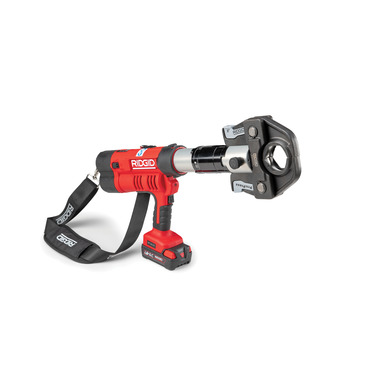

Ridgid RP 342-XL Press Tool (7,200 lbs, RIDGID RP 342-XL Press Tool with Actuator)

Specification

Capacity: 1/2" to 4" for carbon steel, copper and stainless steel, 1/2" to 2" for PEX

Head Rotation: 270° head swivel

Hyrdralic Ram Output: 7,200 lbs. (32kN)

Weight: 10.8 lbs./4.9 kg (no battery/attachment)

Length: 20.9" (531 mm)

Height: 10.5" (267 mm)

Width: 3.35" (85 mm)

Crimp Cycle Time: Standard - ~4 seconds, Extended - ~ 9 seconds

Lighting: LED-Light

Service Cycle Interval: 20,000

Weight: 10.30 kg

Standard Equipment

65858 - RIDGID RP 342-XL Press Tool Only

56513 - 18V 2.5Ah Advanced Lithium Battery

64383 - 18V Lithium Battery Charger

65483 - RP 342-XL Carrying Case
