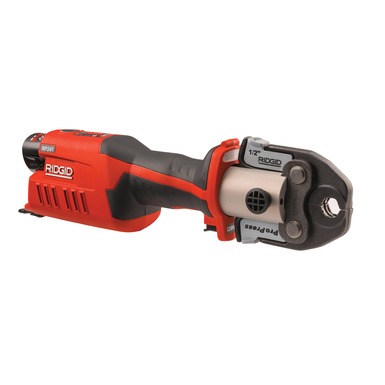

Ridgid RP 241 Press Tool (RP 241 Press Tool Only)

SPECIFICATIONS

Power: 12V Advanced Lithium 2.5 Battery

Weight

+ Tool Only: 4.8 lbs (2.3 kg)

+ Tool w/Battery: 5.2 lbs (2.4 kg)

+ Tool w/Battery & 15 mm Jaw: 7.4 lbs (2,5 kg)

Head Rotation: 180˚ barrel/jaw swivel.

Length: 15.8" (40cm)

Height: 4.25" (10.8 cm)

Crimp Cycle Time: ~5 seconds

Lighting: Large LED-light for no or low-light environments.

Charge: 140+ crimps per charge.

Model Design: Inline design to help access tight spaces.

Service Cycle Interval: 32,000

JAW CAPACITIES

Copper and Stainless Steel Capacity: 1/2" - 1 1/4" (12-35 mm)

Pex / Multilayer Capacity: 1/2" - 1 1/2" (14-32 mm)

Steel Capacity (North America): 1/2" - 3/4"

Standard Equipment

73688 - RP 241 Press Tool + RLS Jaws Kit CASE ONLY

55148 - RLS Compact Jaw 1-3/8"

55143 - RLS Compact Jaw 1-1/8"

55138R - RLS Compact Jaw 7/8"

55133 - RLS Compact Jaw 3/4"

55128 - RLS Compact Jaw 5/8"

55123 - RLS Compact Jaw 1/2"

55118 - RLS Compact Jaw 3/8"

55108 - RLS Compact Jaw 1/4"

55193 - 12V Advanced Lithium Battery Charger

55183 - 12V Advanced Lithium 2.5Ah Battery

57388 - RP 241 Press Tool Only
