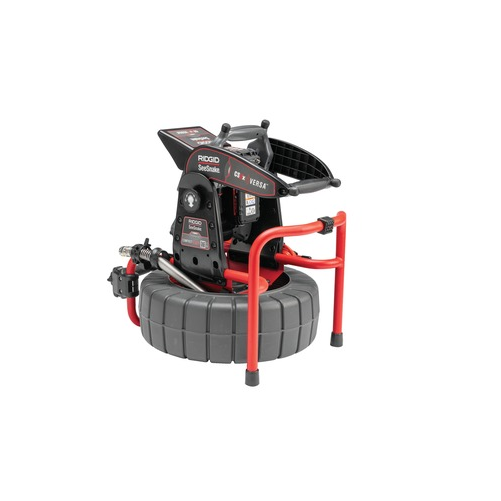

Ridgid C40 SeeSnake® Compact Camera System with TruSense® (with Self-Leveling Camera)

Line Capacity: 1.5" to 6" (38mm to 152mm)

Push Cable Length: 131' (40m)

Push Cable Diameter: 0.26" (6.7 mm) with 3 mm [0.12 in] Fiberglass core

Push Cable Jacket: Polypropylene

Push Cable Bend Minimum Radius: 2.5" (63.5 mm)

Weight (without batteries): 17.6 lbs. (8.0 kg)

Size Length: 25" (63.5 cm)

Width: 14" (35.6 cm)

Height: 17" (43.2 cm)

Camera Type: 1" (25 mm)

Operating Temperature: 14°F to 122°F (-10°C to 50°C)

Storage Temperature: 14°F to 158°F (-10°C to 70°C)

Ingress Protection without Monitor: IPx5

Light Source: High-Intensity LED Sonde 512 Hz
