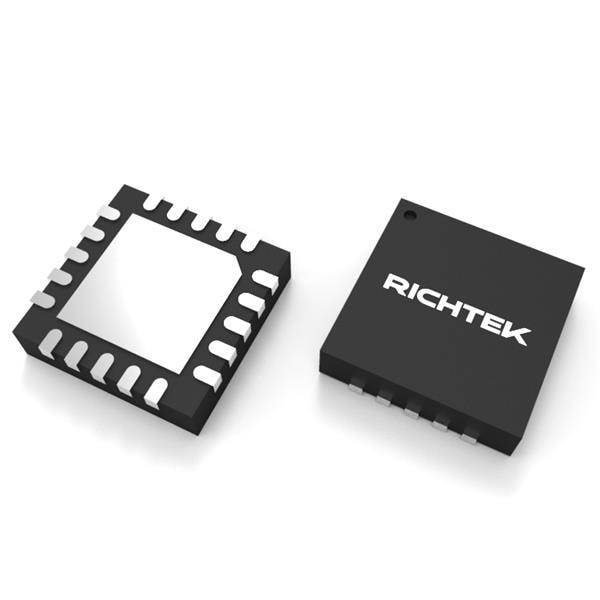

Richtek RT8577AGQW LED Lighting Drivers High Voltage 4-CH LED Driver
ManufacturerRichtek(View more products from this manufacturer)
ModelRT8577AGQW
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Features: PWM Dimming, Adjustable Switch Frequency, Soft Start, Over Current Protection, Over Voltage Protection, Overtemperature Protection
Topology: Boost
Unit Weight: 62 mg
Mounting Style: SMD/SMT
Output Current: 120 mA
Output Voltage: 600 mV
Number of Outputs: 4 Output
Moisture Sensitive: Yes
Number of Channels: 4 Channel
Input Voltage - Max: 40 V
Input Voltage - Min: 5.5 V
Operating Frequency: 200 kHz to 2.1 MHz
Maximum Operating Temperature: + 105 C
Minimum Operating Temperature: - 40 C
