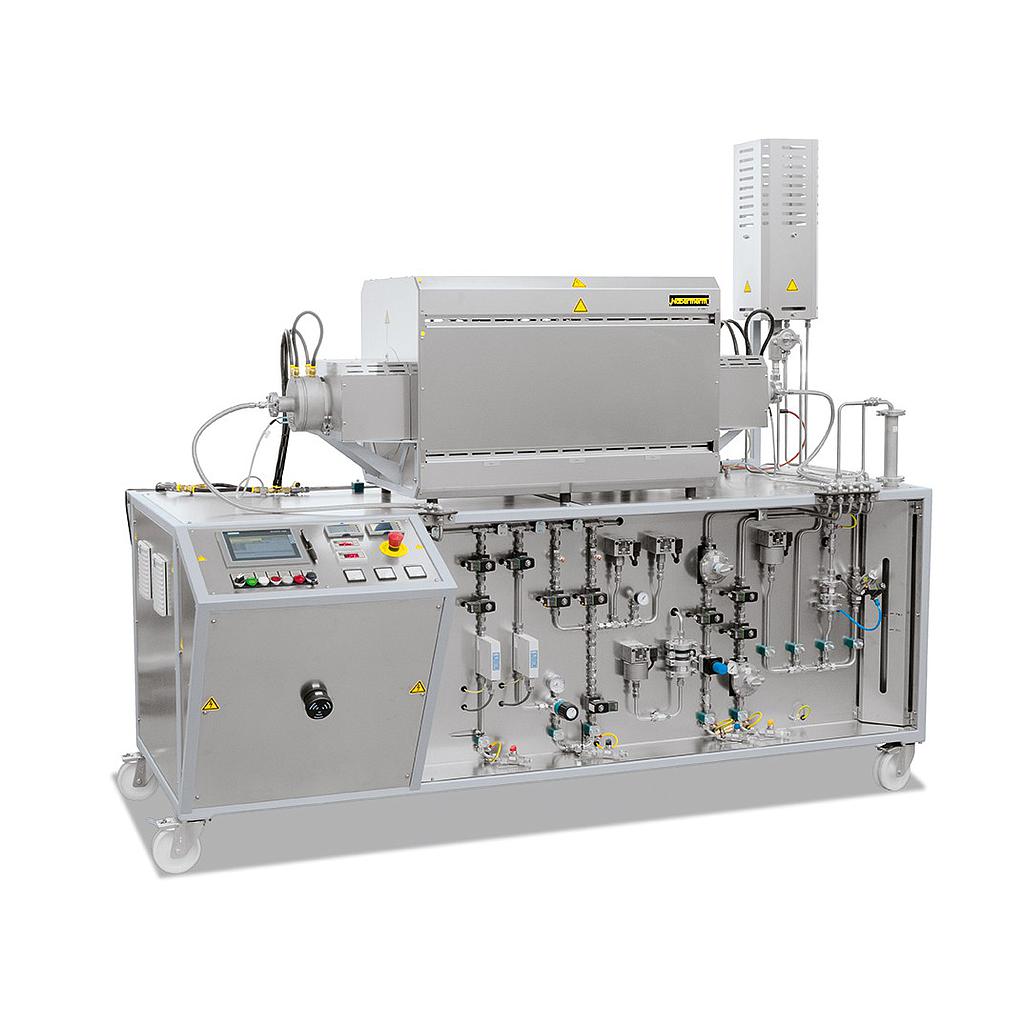

NABERTHERM RHTH 120/600/18 H2 Furnaces
ManufacturerNABERTHERM(View more products from this manufacturer)
ModelRHTH 120/600/18 H2
OriginGermany
Warranty12 months
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Outer dimensions furnace approx: 2500 x 1150 x 2130 mm
Weight approx. 600 kg
Power rating furnace approx. 14,4 kW
Power supply furnace 380 V, 3/N/PE, 50 Hz, fuse protection without earth-leakage breaker
Max. tube diameter outer 120 mm
Heated tube length 600 mm
Length constant temperature +− K 200 mm
Tmax 1800 °C
Tmax in working tube approx. 1750 °C
Process gases nitrogen (N2), hydrogen (H2)
Flow rate of process gases 10 – 100 l/h
Operation pressure approx. 30 – 50 mbar
