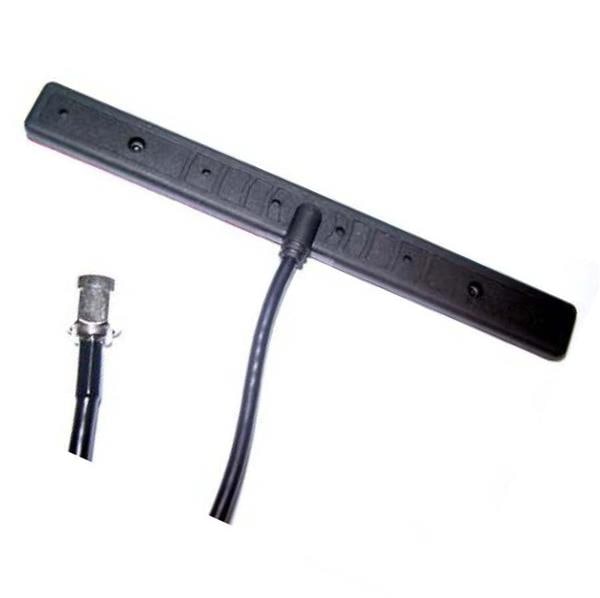

RF Solutions ANT-TBARQB-SMA Passive Antenna T' Bar GSM Antenna QB Adhesive

Gain: 3 dBi

VSWR: 2.0

Style: T-Bar

Width: 10 mm

Height: 3 mm

Length: 104 mm

Impedance: 50 Ohms

Cable Type: 3 M RG174

Application: Cellular Application

Unit Weight: 50 g

Cable Length: 3 mm

Mounting Style: Adhesive Mount

Number of Bands: 4 Band

Center Frequency: 868 MHz, 915 MHz, 1700 MHz, 1800 MHz, 1900 MHz, 2100 MHz

Mechanical Style: Module

Maximum Frequency: 2.2 GHz

Minimum Frequency: 824 MHz

Termination Style: Connector

Protocol - Sub GHz: RFID

Antenna Connector Type: SMA Male

Protocol - Cellular, NBIoT, LTE: 2G/3G/4G, Cellular (NBIoT, LTE), GSM, UMTS, DCS, PCS, GPRS
