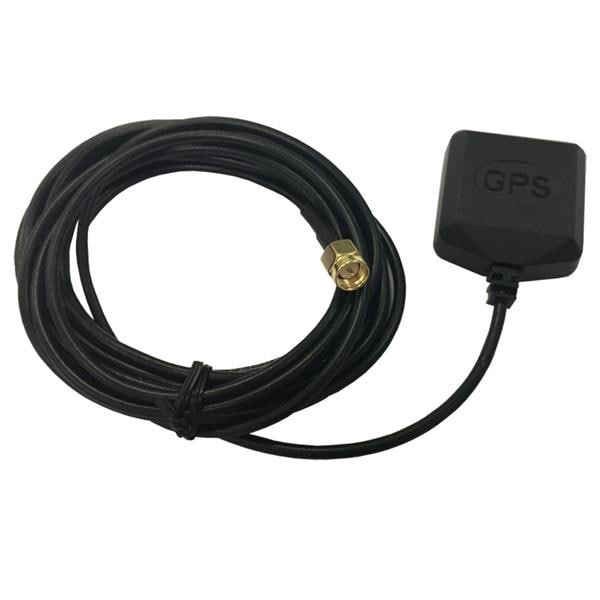

RF Solutions ANT-GPSC-SMA Active Antenna GPS Antenna with 5m RG174 SMA male

Gain: 4 dB

VSWR: 2.0

Style: Panel

Width: 34 mm

Height: 12 mm

Length: 38 mm

IP Rating: IP67

Impedance: 50 Ohms

Cable Type: 5 M RG174

Application: Car Systems, Handheld Systems

Unit Weight: 50 g

Cable Length: 5 m

Polarization: RHCP

Mounting Style: Magnetic Mount

Number of Bands: 1 Band

Center Frequency: 1.575 GHz

Mechanical Style: Module

Maximum Frequency: 1.578 GHz

Minimum Frequency: 1.572 GHz

Termination Style: Connector

Antenna Connector Type: SMA Male

Protocol - GPS, GLONASS: BEIDOU, Galileo, GPS

Maximum Operating Temperature: + 60 C

Minimum Operating Temperature: - 30 C
