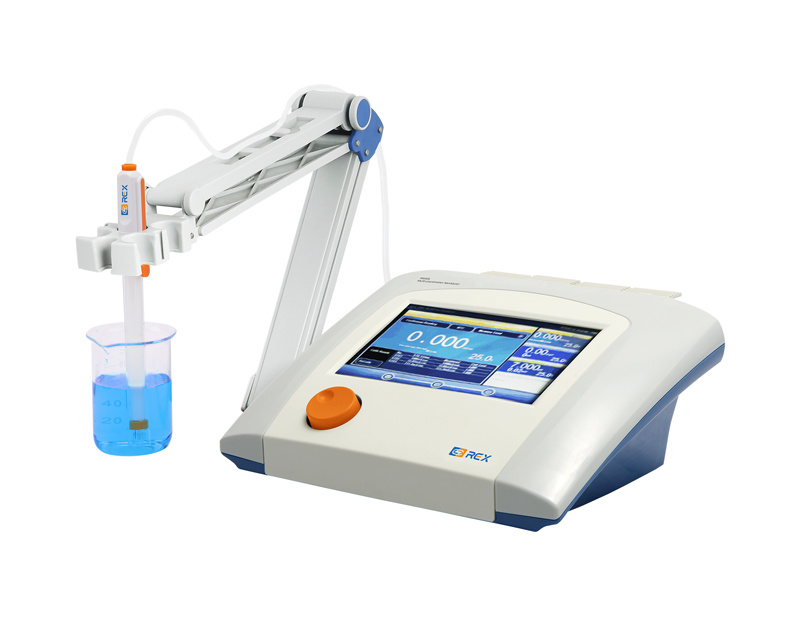

REX M600L Multi-parameter Analyzer (-2.000 ~ 20.000 pH, -2000.00 ~ 2000.00 mV)

Parameters: pH/EC/ISE/DO/Temp. (mV/ORP/pX/Resistivity/TDS/Sal./DO Saturation)

pH:

Range: -2.000 to 20.000 pH

Resolution: 0.1, 0.01, 0.001pH

Accuracy: ±0.002 pH

Calibration Points: Up to 6

Standard Customization: Yes

Calibration Reminder: Yes

Standard Recognition: NIST, GB, DIN buffers

Slope Limit: Yes

mV/ORP:

Range: -2000.00 to 2000.00 mV

Resolution: 0.1, 0.01 mV

Accuracy: ±0.1 mV or ±0.03%

EH ORP Mode: Yes

ORP Calibration Points: 1~2 custom point (relative mV)

pX:

Range: -2.000 to 20.000 pX

Resolution: 0.1, 0.01, 0.001 pX

Accuracy: ±0.002 pX

Calibration Points: Up to 6

ISE:

Range: 1.000e-9 to 9.999e+9

Units: mol/L, mmol/L, g/L, mg/L, μg/L

Resolution: Up to 4 significant digits

Accuracy: ±0.3%

Calibration Points: Up to 6

Conductivity:

Range: 0.000 μS/cm to 3000 mS/cm

Resolution: 0.001 μS/cm minimum, various with range selection

Accuracy: ±0.5% FS

Reference Temperature: 5, 10, 15, 18, 20, 25 ºC

Calibration Points: Up to 5

Standard Recognition: 146.5μS/cm, 1408μS/cm, 12.85mS/cm, 111.3mS/cm

Resistivity:

Range: 5.00 Ω·cm~100.0 MΩ·cm

Resolution: 0.01 Ω·cm minimum

Accuracy: ±0.5% FS

TDS:

Range: 0.000 mg/L~1000 g/L

Resolution: 0.001ppm minimum, changed with range

Accuracy: ±0.5% FS

Salinity:

Type: NaCl%

Range: (0.00~8.00)%

Resolution: 0.0001

Accuracy: ±0.1%

Dissolved:

Range: 0.00 to 99.99 mg/L

Oxygen Concentration - Polarographic:

Resolution: 0.01 mg/L

Accuracy: ±0.1 mg/L

Calibration Reminder: Yes

Calibration Points: Air-saturated water or zero point

Barometric Compensation: Yes

Manual Salinity Factor Correction: Yes

% Saturation -Polarographic:

Range: (0.0 to 600)%

Resolution: 0.001

Accuracy: ±2.0%

Temperature:

Range: -5 to 130 ºC

Unit: ºC

Resolution: 0.1ºC

Accuracy: ±0.1ºC

Measurement:

Reading Mode: Auto Read (Fast, Medium, Slow), Timed, Continuous

Reading Prompts: Reading, Stable, Locked

Temp. Compensation: ATC, MTC

Data management:

Data Storage: 1000 Groups

GLP Features: Yes

Log Management: Yes

Inputs:

pH Electrode: BNC(Q9)

DO with Temp. Probe: 6-pin Mini-DIN

Conductivity with Temp. Probe: 8-pin Mini-DIN

Outputs:

USB, RS 232: USB 2.0 flash memory device, printer, PC

Display options:

Backlight: Yes

Auto Shutdown: 1~60 min, off

IP Rating: IP54

Date and Time: Yes

General:

Power: AC Adapter, 100-240V AC input, DC24V output

Dimensions: 280×280×130 mm

Weight: 2500g (5.51 lb)

Dimensions (Carton): 370×305×330 mm

Weight (Gross): 4 kg

Includes:

E-201-L pH composite electrode

PF-202-L Fluoride ion selective electrode

DJS-1-LEC electrode

T-818-L Temperature probe

DO-958-L DO electrode

NIST pH standard solution(4.01, 7.00, 10.01) ，50ml/vial

1413μS/cm EC standard solution, 50ml, 1 vial

REX-3 electrode stand

Touch pen
