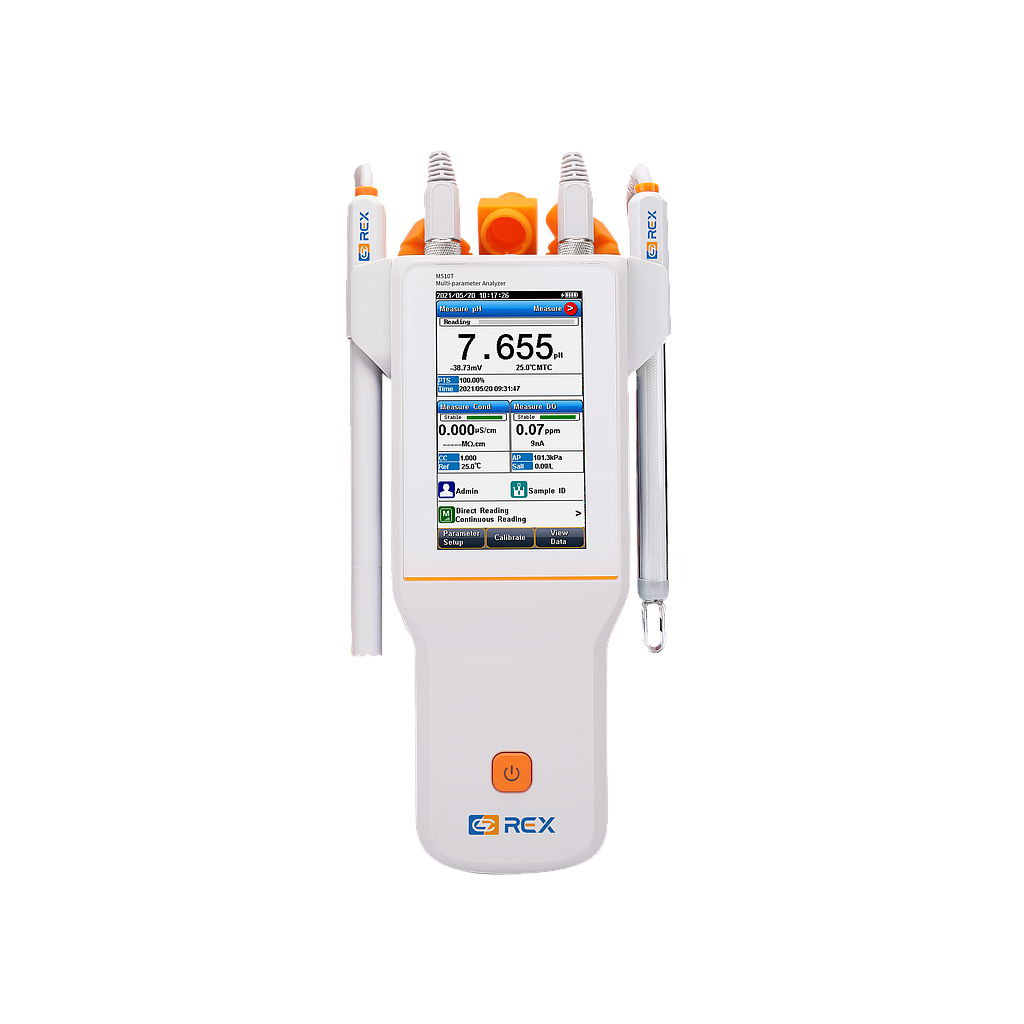

REX M510T-A Portable Multi-parameter Analyzer (-2.000 ~ 20.000 pH, ±0.002 pH)

Parameters: pH/EC/ISE/DO/Temp. (mV/ORP/pX/Resistivity/TDS/Sal./DO Saturation)

pH:

Range: -2.000 to 20.000 pH

Resolution: 0.1, 0.01, 0.001pH

Accuracy: ±0.002 pH

Calibration Points: Up to 8

Standard Customization: Yes

Calibration Reminder: Yes

Standard Recognition: USA, NIST, MERK, JIS, GB and DIN buffers

Slope Limit: Yes

mV/ORP:

Range: -2000.00 to 2000.00 mV

Resolution: 0.1, 0.01 mV

Accuracy: ±0.1 mV or ±0.03%

EH ORP Mode: Yes

ORP Calibration Points: 1 custom point (relative mV)

pX:

Range: -2.000 to 20.000 pX

Resolution: 0.1, 0.01, 0.001 pX

Accuracy: ±0.002 pX

Calibration Points: Up to 6

ISE:

Range: 1.000e-9 to 9.999e+9

Units: mol/L, mmol/L, g/L, mg/L, μg/L, ppm, ppb

Resolution: Up to 4 significant digits

Accuracy: ±0.3%

Calibration Points: Up to 8

Conductivity:

Range: 0.000 μS/cm to 3000 mS/cm

Resolution: 0.001 μS/cm minimum, various with range selection

Accuracy: ±0.5% FS

Reference Temperature: 5, 10, 15, 18, 20, 25 ºC

Calibration Points: Up to 5

Calibration Reminder: Yes

Standard Recognition: 10μS/cm, 84μS/cm, 500μS/cm, 1413μS/cm, 12.88mS/cm; 146.5μS/cm, 1408μS/cm, 12.85mS/cm, 111.3mS/cm

Resistivity:

Range: 5.00 Ω·cm~100.0 MΩ·cm

Resolution: 0.01 Ω·cm minimum

Accuracy: ±0.5% FS

TDS:

Range: 0.000 ppm~1000 ppt

Resolution: 0.001ppm minimum, changed with range

Accuracy: ±0.5% FS

Salinity:

Range: 0.0～80.0 ppt

Resolution: 0.1ppt

Accuracy: ±1ppt

Dissolved Oxygen Concentration:

Sensor Type: Polarographic

Range: 0.00 to 99.99 ppm

Resolution: 0.01 ppm

Accuracy: （0.00~50.00）ppm，±0.10ppm; （50.0~99.99）ppm，±0.50ppm

Calibration Reminder: Yes

Calibration Points: Air-saturated water or zero point

Barometric Compensation: Yes

Manual Salinity Factor Correction: Yes

Saturation:

Range: (0.0 to 600.0)%

Resolution: 0.001

Accuracy: ±2.0%

Temperature:

Range: -10 to 135 ºC, 14 to 275 ºF

Unit: ºC, ºF

Resolution: 0.1

Accuracy: ±0.1ºC

Measurement:

Reading Mode: Auto Read (Fast, Medium, Slow), Timed, Continuous

Reading Prompts: Reading, Stable, Locked

Temp. Compensation: ATC, MTC

Data management:

Data Storage: 1000 Groups

GLP Features: Yes

Inputs:

pH Electrode: BNC(Q9)

DO with Temp. Probe: 4-pin aviation connector

Conductivity with Temp. Probe: 5-pin aviation connector

Outputs Display options:

USB: USB 2.0 flash memory device, PC, scanner

Backlight: Yes

Auto Shutdown: 300, 600, 1200, 1800, 3600 sec., off

IP Rating: IP65

Date and Time: Yes

General:

Power: Rechargeable Lithium battery, AC Adapter, 100-240V AC input, DC5V output

Dimensions: 90×255×40 mm

Weight: 500g (1.1 lb)

Includes:

E-301-QC 3 in 1 pH composite electrode

DJS-1VTC EC electrode

DO-958-Q polarographic DO electrode

NIST pH standard solution(4.01, 7.00, 10.01) ，50ml/vial

Electrode holder

Silicone rubber case

Wristbands

Touch pen

Carrying case

Brochure
