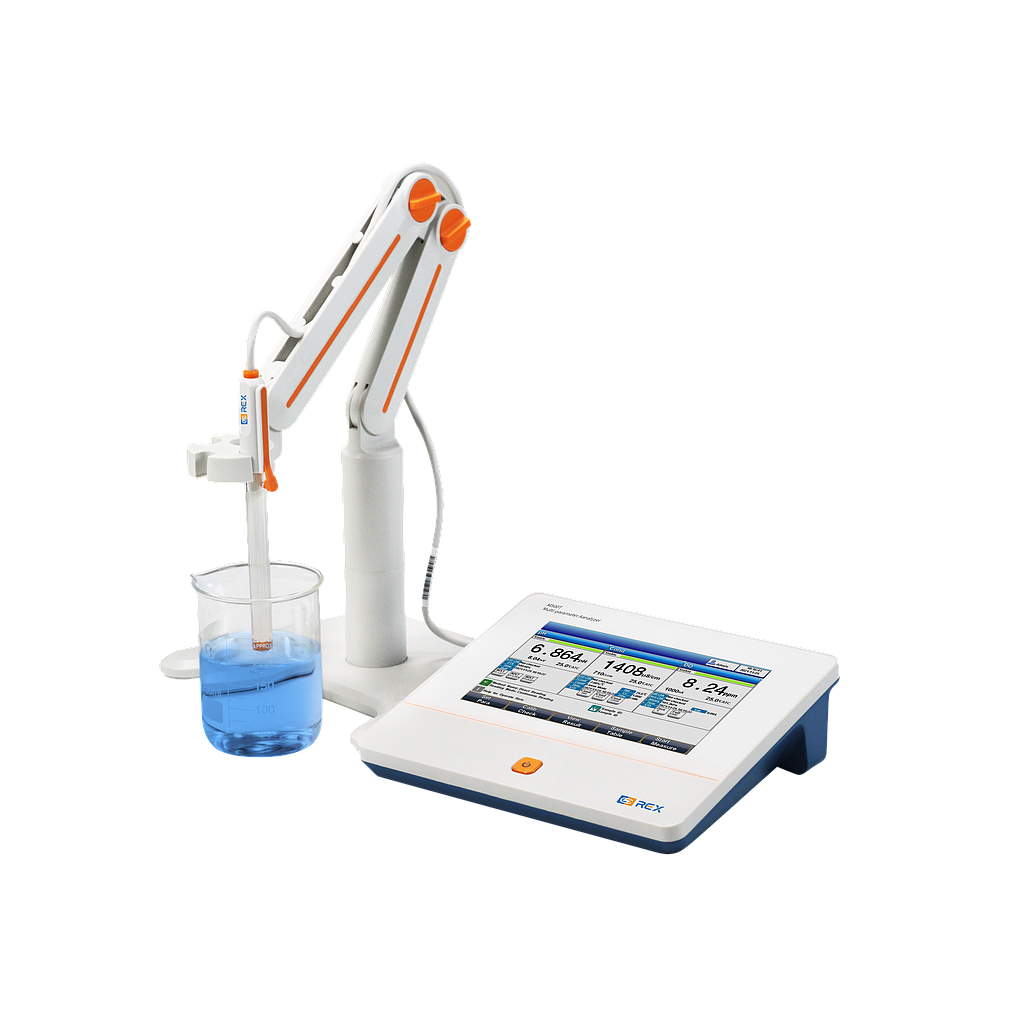

REX M500T Multi-parameter Analyzer (-2.000 ~ 20.000 pH, -2000.00 ~ 2000.00 mV)

Parameters: pH/EC/ISE/DO/Temp. (mV/ORP/pX/Resistivity/TDS/Sal./DO Saturation)

pH:

Range: -2.000 to 20.000 pH

Resolution: 0.1, 0.01, 0.001pH

Accuracy: ±0.002 pH

Calibration Points: Up to 6

Standard Customization: Yes

Calibration Reminder: Yes

Standard Recognition: NIST, GB, DIN, USA, MERK, JIS buffers

Slope Limit: Yes

mV/ORP:

Range: -2000.00 to 2000.00 mV

Resolution: 0.1, 0.01 mV

Accuracy: ±0.1 mV or ±0.03% of reading whichever is greater

EH ORP Mode: Yes

ORP Calibration Points: 1 custom point (relative mV)

pX:

Range: -2.000 to 20.000 pX

Resolution: 0.1, 0.01, 0.001 pX

Accuracy: ±0.002 pX

Calibration Points: Up to 6

ISE:

Range: 1.000e-9 to 9.999e+9

Units: mol/L, mmol/L, g/L, mg/L, μg/L, ppm, ppb

Resolution: Up to 4 significant digits

Accuracy: ±0.3%

Calibration Points: Up to 6

Conductivity:

Range: 0.000 μS/cm to 2000 mS/cm

Resolution: 0.001 μS/cm minimum, various with range selection

Accuracy: ±0.5% FS

Reference Temperature: 5, 10, 15, 18, 20, 25 ºC

Calibration Points: Up to 5

Calibration Reminder: Yes

Standard Recognition: 10 μS/cm, 84 μS/cm, 500 μS/cm, 1413 μS/cm, 12.88 mS/cm; 146.5μS/cm, 1408μS/cm, 12.85mS/cm, 111.3mS/cm

Resistivity:

Range: 5.00 Ω·cm~100.0 MΩ·cm

Resolution: 0.01 Ω·cm minimum

Accuracy: ±0.5% FS

TDS:

Range: 0.000~1000 ppt

Resolution: 0.001 ppm minimum, changed with range

Accuracy: ±0.5% FS

Salinity:

Type: NaCl

Range: 0.0～80.0 ppt

Resolution: 0.1ppt

Accuracy: ±1ppt

Dissolved Oxygen Concentration - Polarographic:

Range: 0.00 to 99.99 ppm

Resolution: 0.01 ppm

Accuracy: （0.00~50.00）ppm，±0.10ppm; （50.0~99.99）ppm，±0.50ppm

Calibration Reminder: Yes

Calibration Points: Air-saturated water or zero point

Barometric Compensation: Yes

Manual Salinity Factor Correction: Yes

% Saturation - Polarographic:

Range: (0.0 to 600)%

Resolution: 0.1%

Accuracy: ±2.0%

Temperature:

Range: -10 to 135 ºC, 14 to 275 ºF

Unit: ºC, ºF

Resolution: 0.1

Accuracy: ±0.1ºC

Measurement:

Reading Mode: Auto Read (Fast, Medium, Slow), Timed, Continuous

Reading Prompts: Reading, Stable, Locked

Temp. Compensation: ATC, MTC

Data management:

Data Storage: 1000 Groups

GLP Features: Yes

Log Management: Yes

Inputs:

pH Electrode: BNC(Q9)

DO with Temp. Probe: 4-pin aviation connector

Conductivity with Temp. Probe: 5-pin aviation connector

Outputs:

USB: USB 2.0 flash memory device, PC, scanner,

RS 232: printer, auto-sampler

Display options:

Backlight: Yes

Auto Shutdown: 1~60 min, off

IP Rating: IP54

Date and Time: Yes

General:

Power: AC Adapter, 100-240V AC input, DC24V output

Dimensions: 220×195×68 mm

Weight: 950g (2.09 lb)

Includes:

E-301-QC pH 3 in 1 composite electrode

DJS-1VTC EC electrode

DO-958-Q polarographic DO electrode

NIST pH standard solution(4.01, 7.00, 10.01) ，50ml/vial

1413μS/cm EC standard solution, 50ml, 1 vial

REX-6 electrode stand

Touch pen

Brochure
