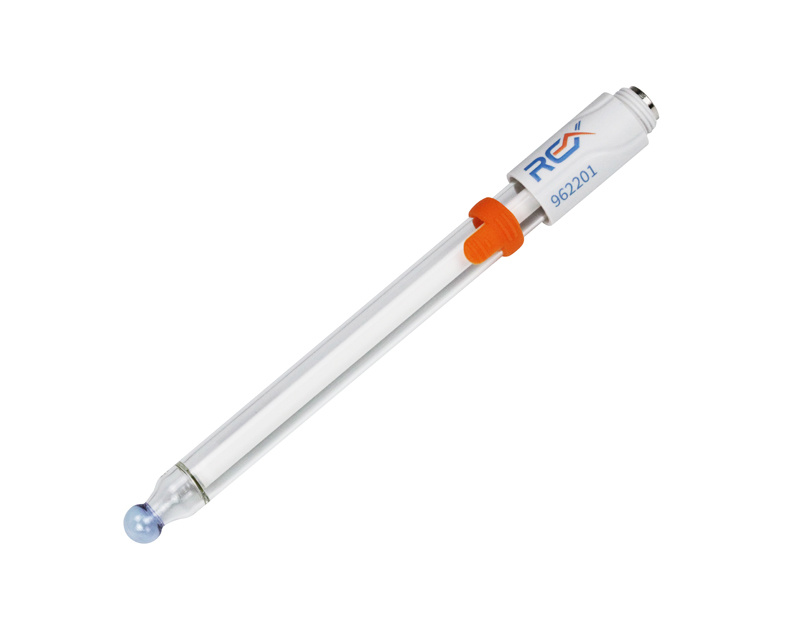

REX 962201 pH composite electrode (0～14)

pH Range: 0～14

Fill Solution: 3 M KCl

Sensor material: Glass

Working Temp.: 0~80 ℃

Junction material: Ceramic

Reference Type: Longlife ref

Dimension: Φ12×120 mm

Connector Type: S7

pH electrodes has the pH indicator electrode, composite electrode, and 3 in1 pH composite electrode.

pH indicator electrode needs to cooperate with reference electrode.

Composite electrode combines the pH indicator electrode, reference electrode.

3 in 1 pH composite electrode combines the pH indicator electrode, reference electrode, and temperature probe.

Temperature probes can adjust pH measurements by correcting the electrode slope according to the measured temperature.

The connector must be compatible with the meter you are using.

+ S7 【S7-BNC(Q9) cable】

+ BNC(Q9)
