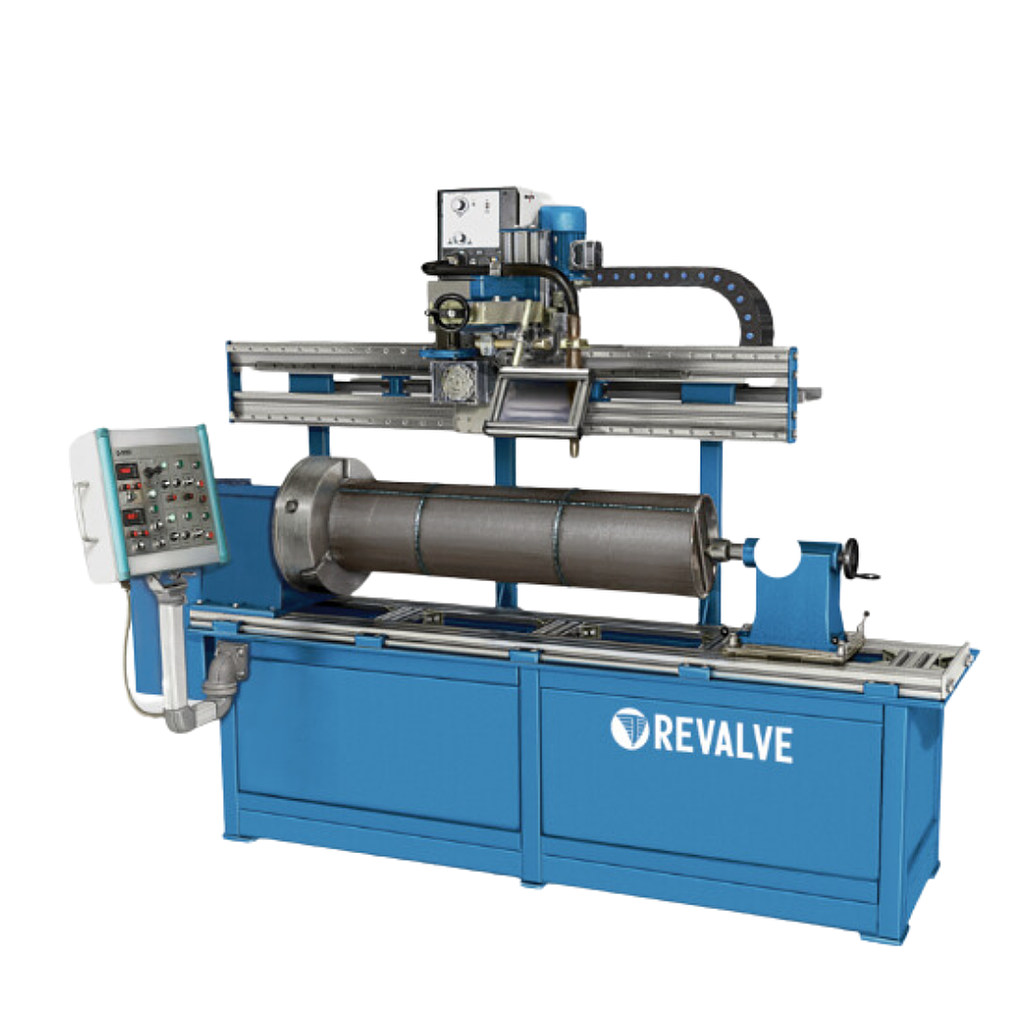

Revalve UNG-400-1300-800-KN Machine for hardfacing, cladding and rebuilding of rotating bodies (DN, 25...400 mm (1...16"))

Parameter: UNG-400-1300-800-KN

Valve range, DN, mm (″): 25...400 (1...16)

Maximum weight of welded part: 800kg

Maximum length of the welded area (″): 1000 (39) mm

Maximum length of installed part (″): 1300 (51)mm

Vertical travel of welding head (″): 180 (7)* mm

Horizontal travel of welding head (″): 1300 (51) mm

Welded part rotation speed: 0,05...3 rpm (continuously adjustable)

Horizontal travel of welding head along welding seam(″): ±50 (±2)mm

Tailstock displacement (″): 1300 (51) mm

Amount of the quill movement (″): 40 (1,6) mm

Arc protection method: gas

Core wire diameter (″): 1,0; 1,2; 1,6 (0,039; 0.047; 0,069) mm

Rated welding current at 100% duty cycle (40 ° C): 450 A

Power supply: 400/50 V/Hz

Overall dimensions (machine/power supply unit) (LxWxH),(″) 2400х1725х2100/1100х455х1000mm (94x68x83/44x18x40)

Weight (machine/power supply unit): 1040/129kg
