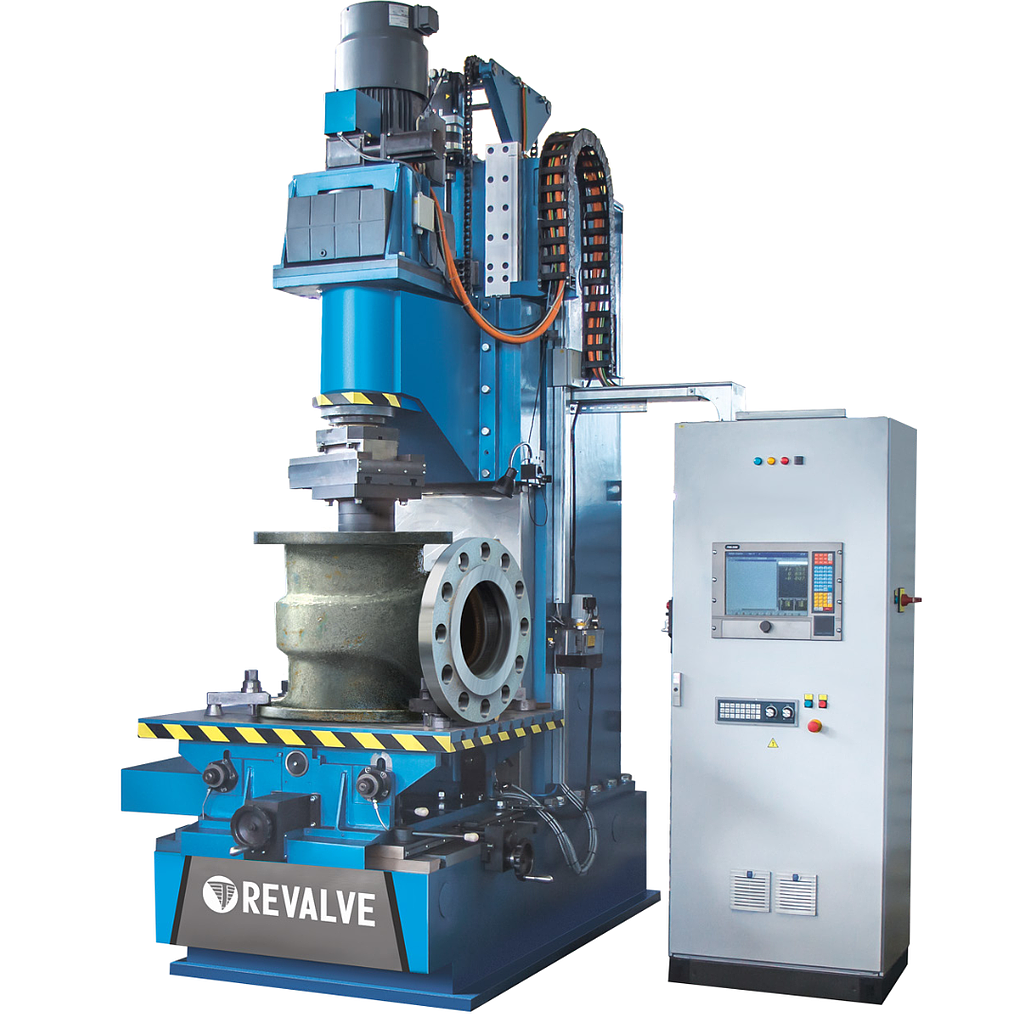

Revalve SR-800 Specialized boring machine for machining of valve trim components
ManufacturerRevalve(View more products from this manufacturer)
ModelSR-800
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Specifications:
Valve range, DN (″): 50...1000 (2...39
Table transverse travel(″): ±100 (4)mm
Table longitudinal travel (″): ±120 (5)mm
Support motion(″): 1200 (47) mm
Vertical travel of spindle head(″): 2000 (79)mm
Tilt angle of the table: ±12 degrees
Table working surface(″): 1000х1200 (39х47) mm
Maximum weight of processed part: 2000 (4409) kg (lbs)
Power consumption: 28 kW
Electric power supply: 400/50 V/Hz
Weight: 12500 kg
* Upon customer reques
