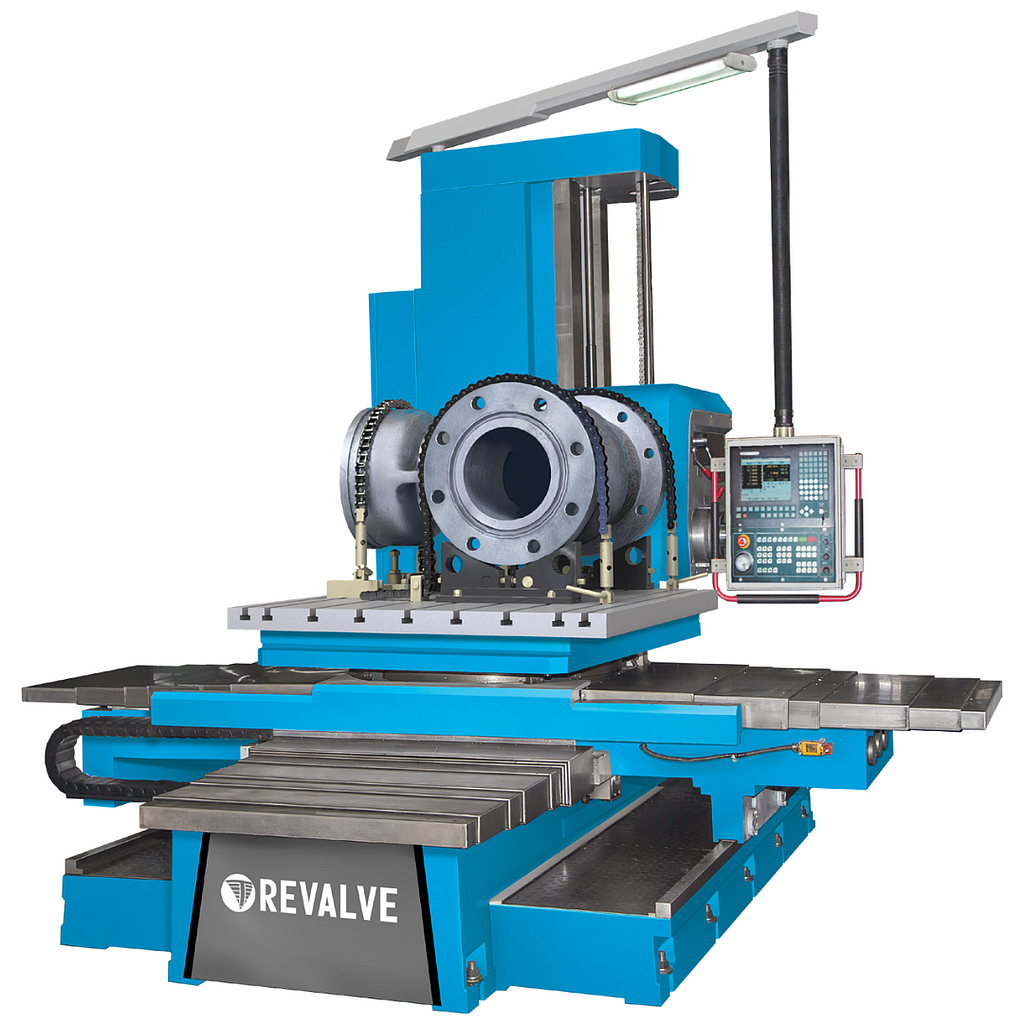

Revalve SR-1200 Specialized boring machine for machining of valve trim components
ManufacturerRevalve(View more products from this manufacturer)
ModelSR-1200
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Specifications:
Valve range, DN (″): 600...1100mm
Spindle diameter (″): 130 (5)mm
Cone cavity of the spindle ISO: 50
Table transverse travel(″): 2000 (79)mm
Table longitudinal travel (″): 1600 (63)mm
Support motion(″): 170 (7)mm
Vertical travel of spindle head(″): 2000 (79)mm
Table working surface(″): 1800х1800 (71х71) mm
Maximum weight of processed part: 25000 (55116) kg (lbs)
Power consumption, kW: 82
Electric power supply: 400/50 V/Hz
Weight: 37450 kg
* Upon customer reques
