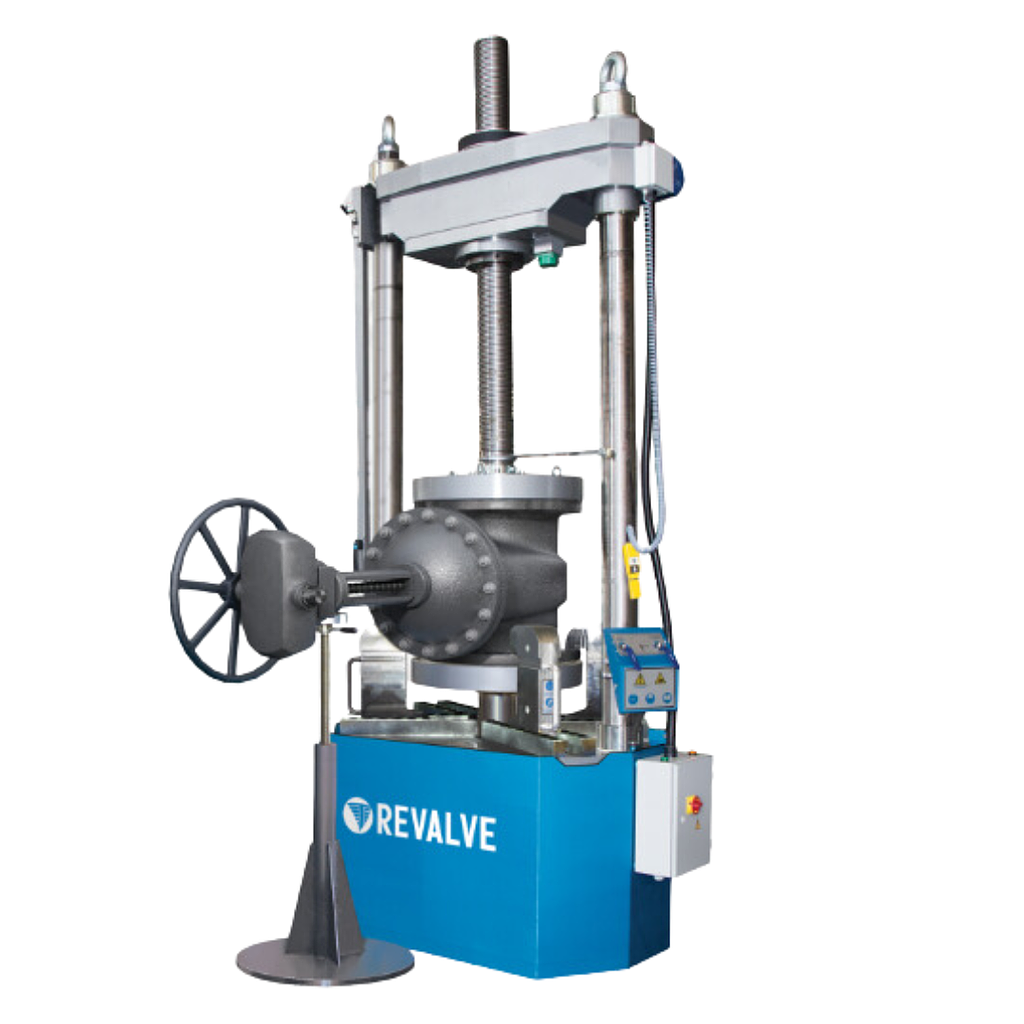

Revalve S-3-800/160 Test benches for shut off & control valves
ManufacturerRevalve(View more products from this manufacturer)
ModelS-3-800/160
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Specifications:
Maximum clamping force: 160t
Diameter of the clamped flange(″): 160/1020 (6/40) (min/max), mm
Maximum thickness of clamped flange(″): 90 (3)mm
Distance between test tables(″): 80/1450 (3/57) (min/max), mm
Distance between the columns(″): 1150 (45)mm
Power supply: 400/50 V/Hz
Power consumption: 1,1 kW
Overall dimensions (LхWхH)(″): 1975х1740х4370 (78x69x176)mm
Weight: 4170kg
