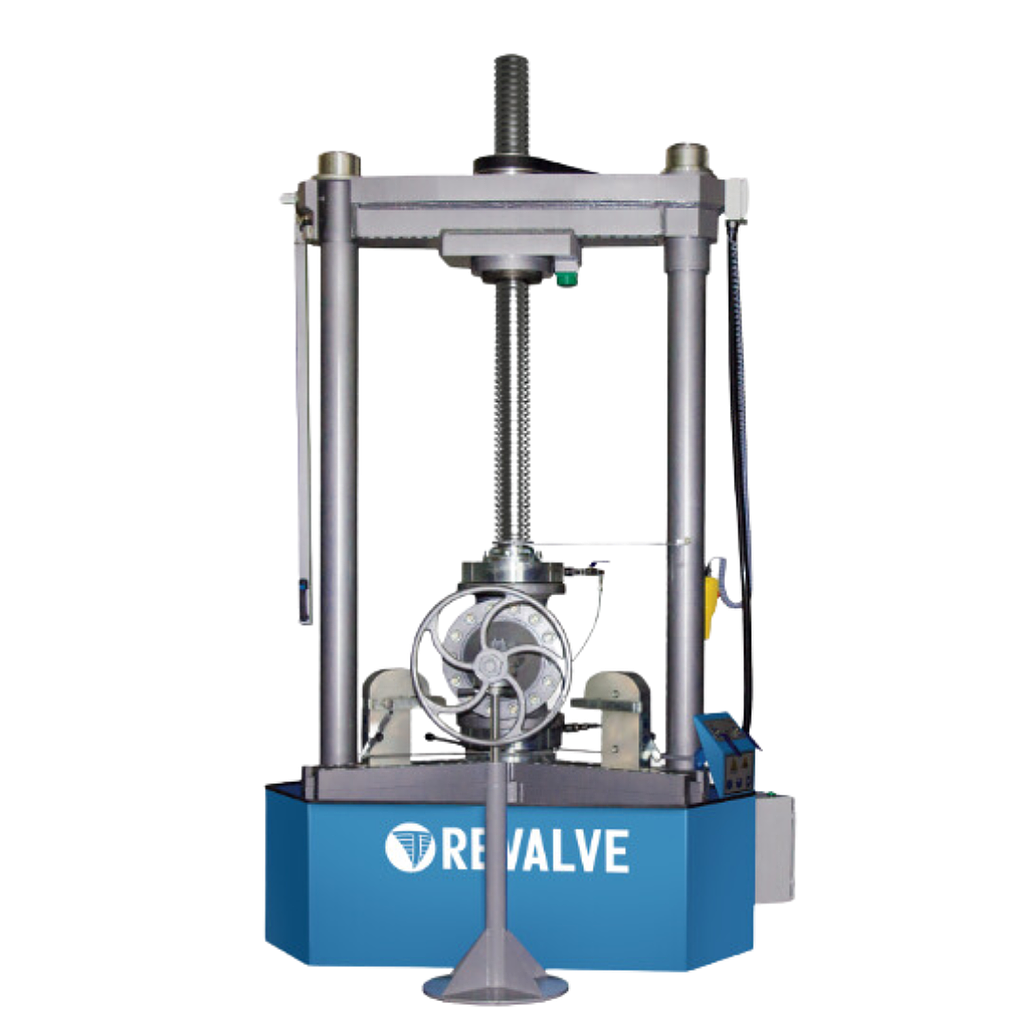

Revalve S-3-600/100 Test benches for shut off & control valves
ManufacturerRevalve(View more products from this manufacturer)
ModelS-3-600/100
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Specifications:
Maximum clamping force: 100t
Diameter of the clamped flange(″): 90/840 (3/33) (min/max), mm
Maximum thickness of clamped flange(″): 115 (4)mm
Distance between test tables(″): 72/1252 (3/49)(min/max),mm
Distance between the columns(″): 900 (35) mm
Power supply: 400/50 V/Hz
Power consumption: 1,1 kW
Overall dimensions (LхWхH), mm (″): 1725х1522х3880 (63x60x153)mm
Weight: 2680kg
