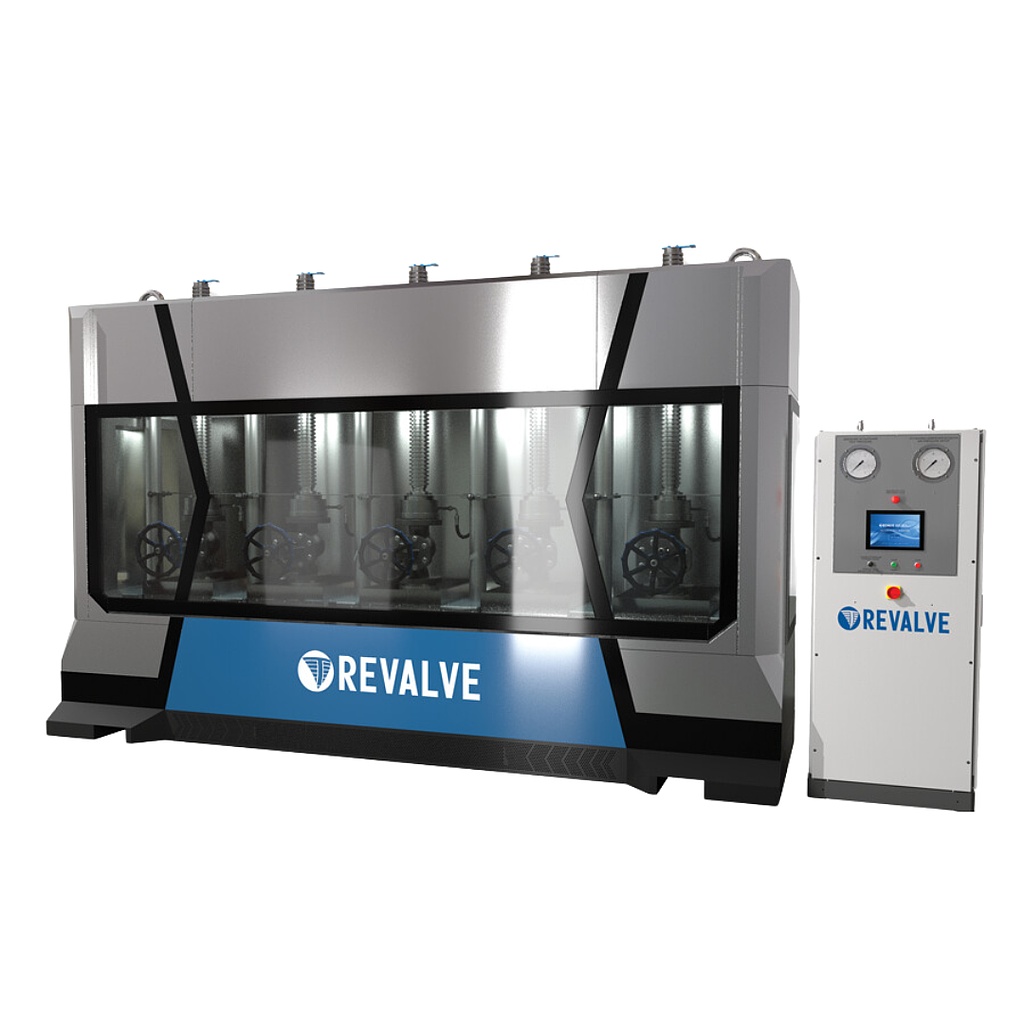

Revalve S-3-100/10-5 Multi-station test bench for shut off & control valves

Specifications:

Number of posts: 5

Maximal clamping force: 5х12 t

Diameter of the clamped flange (Min./max)(″): 100 (4)mm

Construction reinforcement length (max)(″): 450 (18)mm

Distance between axes of adjacent posts(″): 300 (12)mm

Power supply: 400/50 V/Hz

Power consumption: 7,5 kW

Valve opening/closing control: manually / upon request – automatic valve control with mechanical, pneumatic or electric drive

Test pressure (max) bar (psi): 650 (9400) (can be increased upon request)
