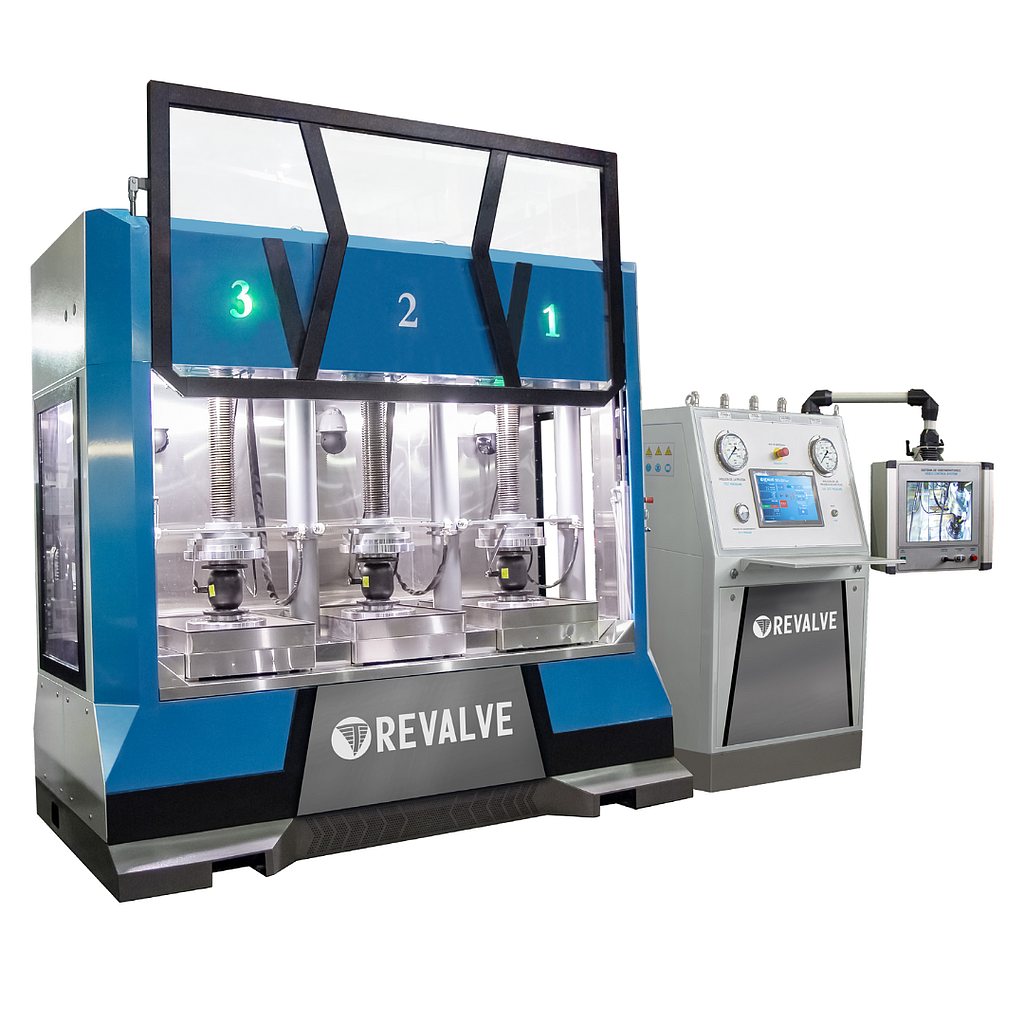

Revalve S-3-100/10-3 Multi-station test bench for shut off & control valves
ManufacturerRevalve(View more products from this manufacturer)
ModelS-3-100/10-3
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Specifications:
Number of posts: 3
Maximal clamping force: 3х12 t
Diameter of the clamped flange (Min./max) (″): 100 (4)mm
Construction reinforcement length (max)(″): 450 (18)mm
Distance between axes of adjacent posts(″): 300 (12) mm
Power supply: 400/50 V/Hz
Power consumption: 7,5 kW
Valve opening/closing control: manually / upon request – automatic valve control with mechanical, pneumatic or electric drive
Max. test pressure, bar (psi): 650 (9400) (can be increased upon request)
