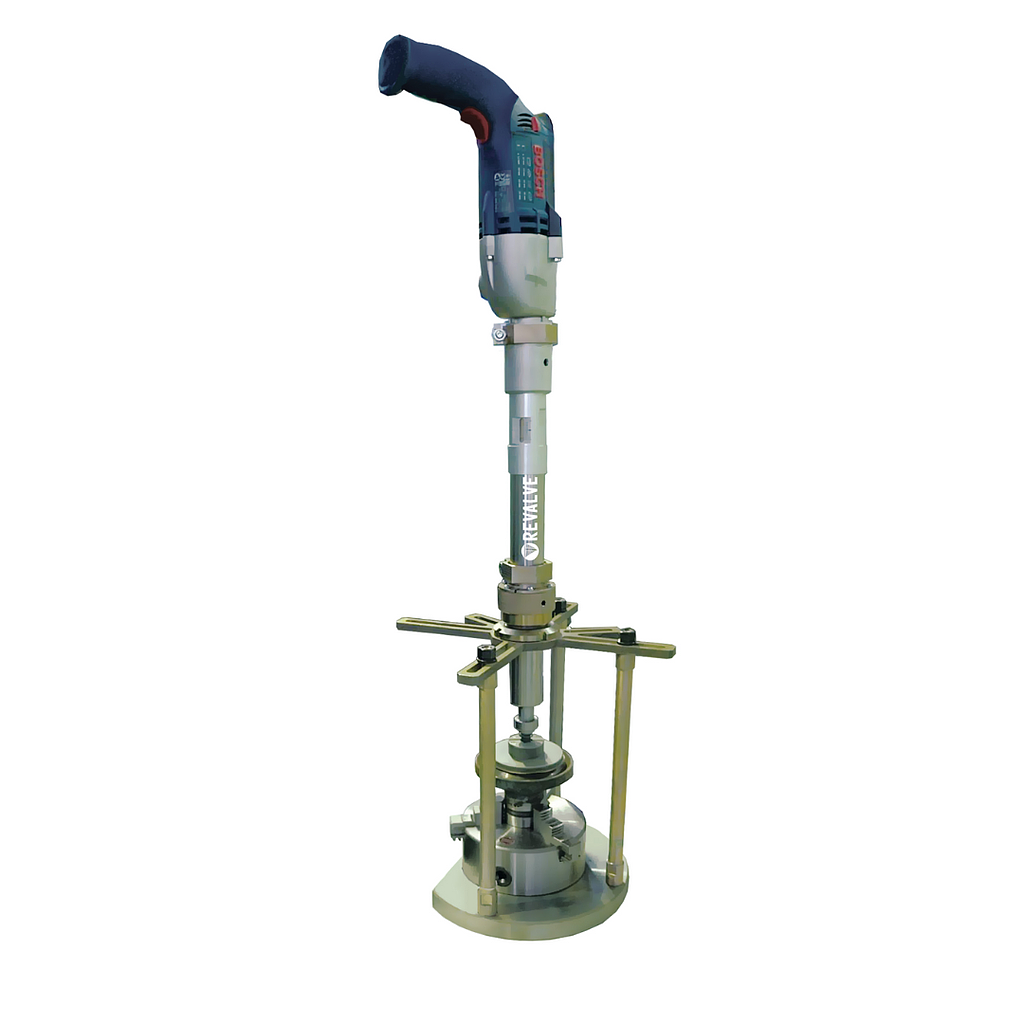

Revalve PUR-5 Portable machine for grinding & lapping of globe & safety valves

Specification:

Valve range, DN, mm (″): 32...200 mm (1¼...8) (25...200 mm (1...8) for safety valve)

Immersion depth - T (″): 1000 (40) mm

Minimum size - А (″): 87 (3)mm

Electric drive:

- Power supply: 230 /50 V/Hz

- Power consumption: 1,3 kW.

Pneumatic drive:

- Power: 0,83 kW

- Air flow rate: 1,6 (423) m³/min (gl/min)

- Compressed-air working pressure, bar (psi): 6,3 (91)

Maximum immersion depth into the valve housing(″): 200 (8)mm

Weight:

- The heaviest mounted assembly: 7kg

- Set (with pneumatic and electric drive): 60kg
