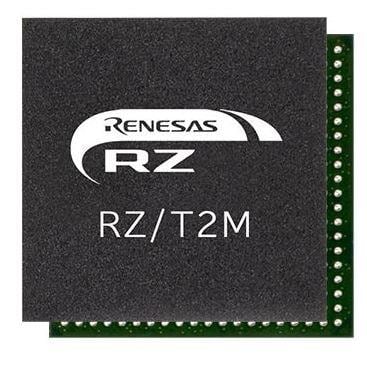

Renesas Electronics R9A07G075M22GBA#AC0 Microprocessors - MPU RZ/T2M MPU BGA225 ETHER NON-SEC CAN

Core: ARM Cortex R52

Memory Type: SDRAM

Data RAM Size: 2 MB

Data Bus Width: 32 bit

Interface Type: I2C, SPI, USB

Mounting Style: SMD/SMT

Number of I/Os: 135 I/O

Number of Cores: 2 Core

Watchdog Timers: Watchdog Timer

Moisture Sensitive: Yes

L1 Cache Data Memory: 16 kB, 32 kB

Maximum Clock Frequency: 800 MHz

Operating Supply Voltage: 3.135 V to 3.465 V

Number of Timers/Counters: 14 x 16 bit, 20 x 32 bit

L1 Cache Instruction Memory: 16 kB, 32 kB

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C

L2 Cache Instruction / Data Memory: 16 kB, 32 kB
