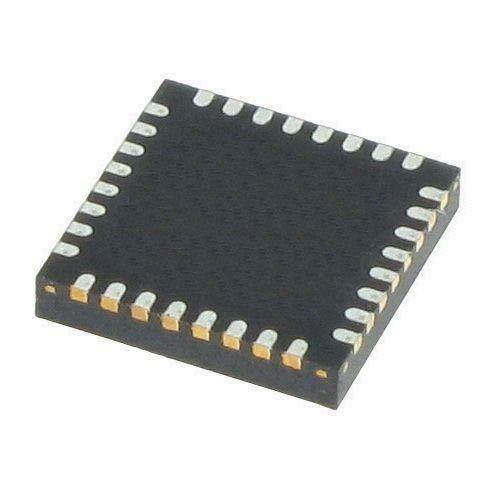

Renesas Electronics R7F123FBG4ANP-C#BA0 16-bit Microcontrollers - MCU 16BIT MCU RL78/F23 128K/12K QFN32

Core: RL78

Data RAM Size: 12 kB

Data RAM Type: RAM

Qualification: AEC-Q100

ADC Resolution: 12 bit

DAC Resolution: 8 bit

Data Bus Width: 16 bit

Interface Type: CAN FD, CSI, I2C, UART

Mounting Style: SMD/SMT

Number of I/Os: 25 I/O

Watchdog Timers: Watchdog Timer

Moisture Sensitive: Yes

Program Memory Size: 128 kB

Program Memory Type: Flash ROM

Supply Voltage - Max: 5.5 V

Supply Voltage - Min: 2.7 V

Analog Supply Voltage: 2.7 V to 5.5 V

Number of ADC Channels: 10 Channel

Maximum Clock Frequency: 40 MHz

Maximum Operating Temperature: + 125 C

Minimum Operating Temperature: - 40 C
