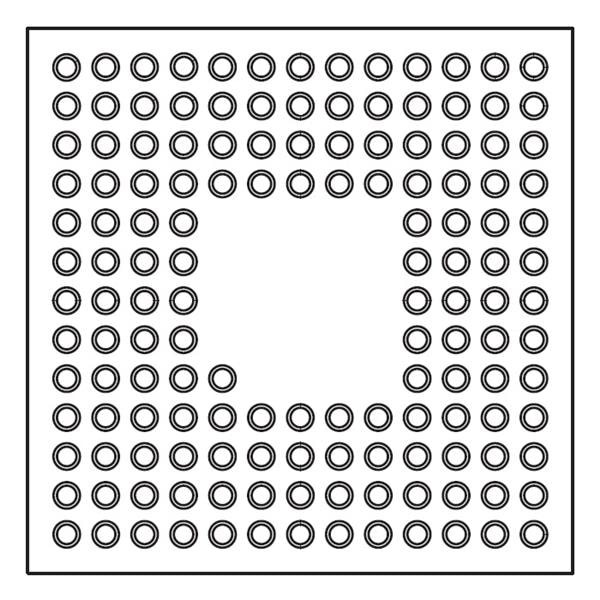

Renesas Electronics R5F56216BDLE#U0 MCUs 32BIT MCU RX621 256K/64K TFLGA145

Core: RX

Width: 9 mm

Height: 1.2 mm

Length: 9 mm

Data RAM Size: 64 kB

Data RAM Type: RAM

ADC Resolution: 12 bit

DAC Resolution: 10 bit

Data Bus Width: 32 bit

Interface Type: CAN, I2C, SCI, USB

Mounting Style: SMD/SMT

Number of I/Os: 103 I/O

Watchdog Timers: Watchdog Timer

Processor Series: RX621

Moisture Sensitive: Yes

Program Memory Size: 256 kB

Program Memory Type: Flash

Supply Voltage - Max: 3.6 V

Supply Voltage - Min: 2.7 V

Maximum Clock Frequency: 100 MHz

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
