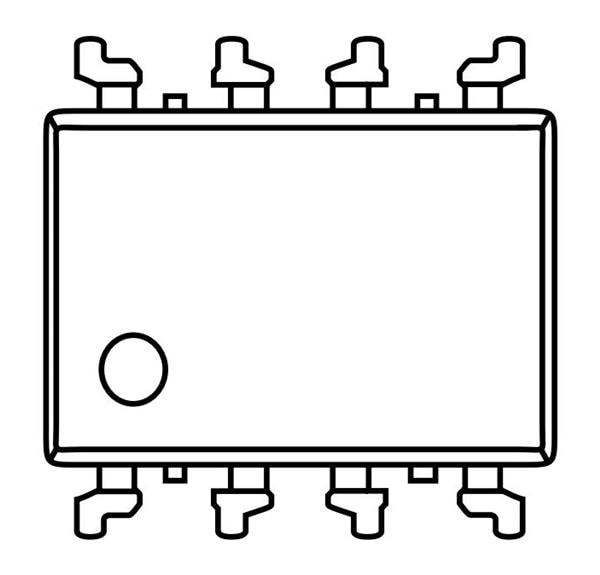

Renesas Electronics PS8501L2-V-AX High Speed Optocouplers HI-SPD OPTOCPLR 8-PIN DIP

Width: mm

Height: mm

Length: mm

Data Rate: 1 Mb/s

Output Type: Photo IC

Output Current: 8 mA

Isolation Voltage: 5000 Vrms

Number of Channels: 1 Channel

If - Forward Current: 16 mA

Vf - Forward Voltage: 1.7 V

Vr - Reverse Voltage: 5 V

Current Transfer Ratio: 15 %

Pd - Power Dissipation: 100 mW

Maximum Operating Temperature: + 100 C

Minimum Operating Temperature: - 55 C
