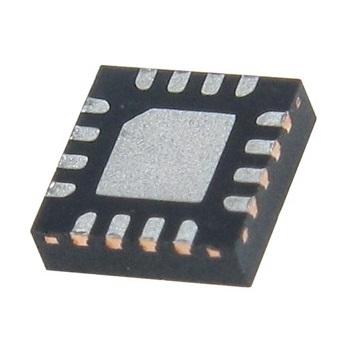

Renesas Electronics F1478NLGA8 General Purpose Amplifiers F1478 HIGH GAIN RF AMPLIFIER
ModelF1478NLGA8
Contact
Secure Checkout
Quality Engagement
Easy change and return
Delivery Available
Gain: 29.6 dB
Technology: Si
Mounting Style: SMD/SMT
Test Frequency: 3.55 GHz
NF - Noise Figure: 1.8 dB
Moisture Sensitive: Yes
Number of Channels: 1 Channel
Operating Frequency: 1.8 GHz to 5 GHz
Operating Supply Current: 160 mA
Operating Supply Voltage: 5 V
P1dB - Compression Point: 25.5 dBm
OIP3 - Third Order Intercept: 37.3 dBm
Maximum Operating Temperature: + 115 C
Minimum Operating Temperature: - 40 C
