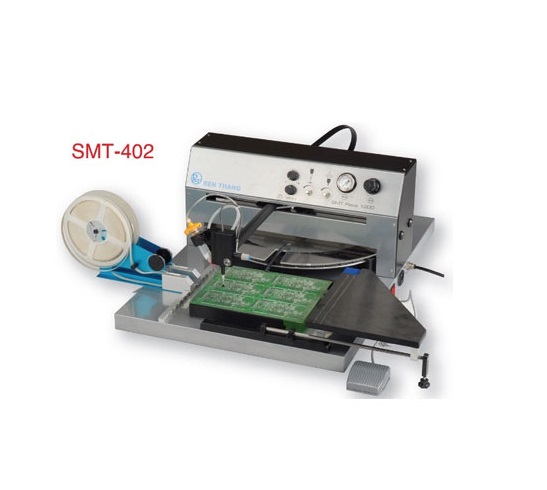

REN THANG SMT-402 Semi-automatic Pick and Place Machine with Spot Glue dispenser

Power: AC 220 V 50 / 60HZ

Dimension: 800x720x300mm

Weight: 22 KGS

Air Source: 4 ~ 5 Kg / square cm

Feeder: 16 Sets

Material Box: 90 pieces

MAX. PCB Working Size: 250x300mm

FEATURES:

SMT-402 has the function to suck SMT component taping and spot glue on the PC board.

Operation with step pad switch to Spot glue SMT component rapidly.

The operation function could be separated or combined Sliding axial X and Y.

Suitable for sucking and taping small size SMT component Feeder frame could turn around 360 degree,

90 kinds of components could be operated. 16 sets SMT tape reel material could be loaded.

uitable for any reel size. Available for sample design, especially for changeable small quantity multi style production.
