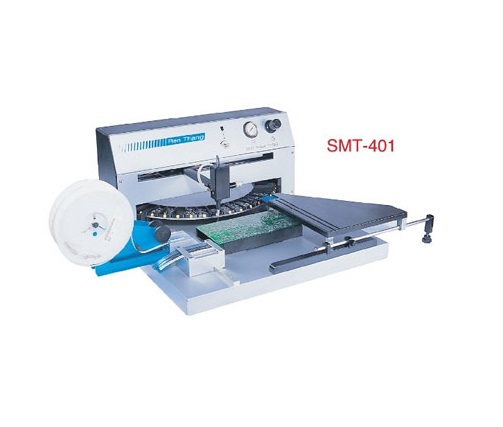

REN THANG SMT-401 SMT Semiautomatic Pick and Place Machine

Power: AC 220 V 50 / 60HZ ( depends on Country)

Weight: 22 KGS

Dimension:800x 720x 300mm

Air Source: 4 ~ 5Kg / squared cm

Feeder:16 Sets

Material Box: 90 pieces

MAX. PCB Working Size: 250 x300mm

Capacity: 20~50pcs / Minute

FEATURES:

Available for sample design, especially for changeable small quantity multi style production.

Sucking quickly the SMT component and taping on the PC board.

Sliding axial X andY. keep the SMT component will not vibration when it is Taped on the board.

Feeder frame could turn around 360 degree, 90 kinds of components could be operated.

16 setsSMT tape reel material could be loaded.

Suitable for anyreel size. Vacuum pipe could suck different size SMTcomponent.

Several machine connected could offer bigvolume and efficiency production only small vestment.
