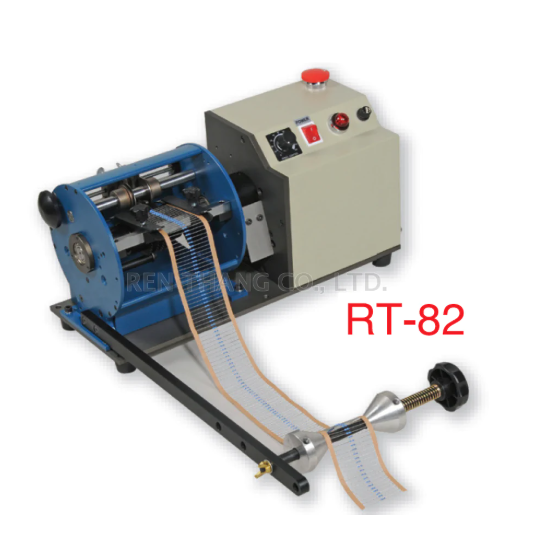

REN THANG RT-82 Taped Axial Cutting Machine with Electronic Drive Unit –U type (60,000 pcs/h)

Body length: 3.5 - 37.6 mm

Lead Length: 3.5-10 mm

Shoulder: 1-2 min

Wire diameter: 0.35-0.8 mm

Body diameter: 1.5-8 mm

Pitch: 6-40 mm

Power: 110V/220V AC.60/50Hz

Dimensions: 470(L) x 180(W) x 235(H) mm

Weight: 15Kgs

FEATURES:

RT-8X Series Lead Formers--Rugged axial lead formers with rotary disc cutters offer no-tools-required setups and changeovers.

Changeovers and setups are simple and fast thanks to no tooling required pitch and lead length adjustments.

RT-8X series of axial lead formers do not score or damage component leads, nor do they place mechanical stress or axial tension on the components.

Heavy duty construction, full adjustable for lead spacing, leads length, part diameter, and shoulder length.

Independent rotary disc cutters for longer cutting life.

Won't score or damage leads or components.
