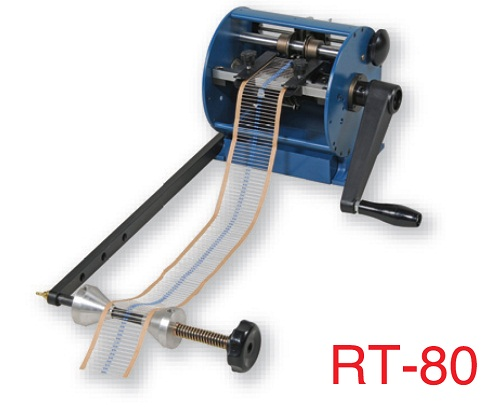

REN THANG RT-80S Taped Axial Lead Cutting Machine (50,000 pcs/h)

Body length: 3.5 - 37.6 mm

Lead Length: 3.5-10 mm

Shoulder: 0.6 min

Wire diameter: 0.35-0.8 mm

Body diameter: 1.5-8 mm

Pitch: 5-40 mm

Dimension: 380(L) x180(W) x 210 (H) mm

Weight: 8kgs (N.W.); 9 kgs (G.W.)

Simple operation- Rotate hand crank. Production rates: Taped 60,000 pcs/hr ( Depends on operator)

RT-80S, RT-82S, RT-86S, RT-90S slim lead (S type)

FEATURES:

RT-80S, Lead Former targets for smaller pitch component.

Changeovers and setups are simple and fast. Thank to no tooling required pitch and lead length adjustment.

Never damage components leads or body.

Lead-supporter device ( Pressure relief) : When bending the components leads, the supporters hold the lead to prevent from damage.

Independent rotary disc cutters for longer cutting life.

Smaller components: like 1/2W, 1/4W resistor are suitable for it.
