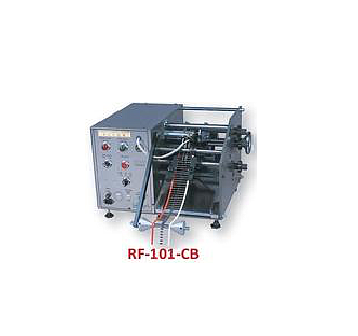

REN THANG RF-101-CB Powerful Axial Lead Forming Machine

Body length: 3.8 - 20 mm

Body diameter: 2.3-8 mm

Shoulder: 1.2 min

Height: Fixed at 8mm or more

Lead Length: Adjustable

Punching height: 2 mm (Fixed)

Support point: 2 ~ 3mm

Pitch: A + 2C

Wire diameter: 0.4-1.3 mm

Power: 110/220 V AC. 60/50HZ

Dimension: 1050(L), 600(W), 650(H) mm

Weight: (N.W.) 115 Kgs. (G.W. ) 150 Kgs

Moving control: Manual rotation, stepping intermittent, Fully automatic, three different modes for choice.

FEATURES:

CB type, specilizes for TAPED parts, which are fed by Feeding GUIDES.

RF-101CB Kinking/ Punching die is equipped upon requested shape and specification as standard equipment. The various punching specification is available with customized die set, offering wide rage application.

Simply tell us "HOW TALL" the components will be above PCB. We can provide you the best preparation solution.

[Optional Accessory] Lead-supporter device ( Pressure relief) : When bending the components leads, the supporters hold the lead to prevent from damage.

Heavy duty and Powerful construction- Sustainable lifespan.

OEM, DIP, PCBA Insertion line's most helpgul equipment!

Never damage lcomponent leads or components body.
