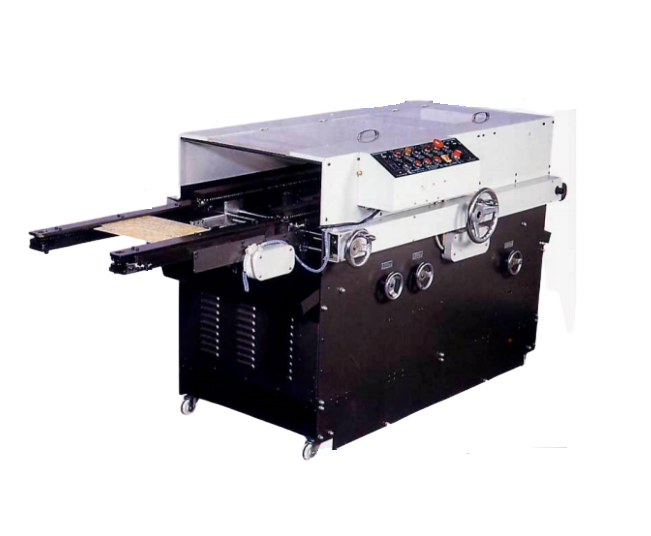

REN THANG KA-22 Automatic Twin Blade PCB Lead Cutter without blade, with copper brush 380V

Machine Size:270(L) x 120(W) x 110(H) m/m

Power:220V 50/60HZ

Net Weight:350Kgs

Spindle Speed:4500 RPM

HP:3/4 HP

Conveyor Speed:0 - 3 m

Min. Lead Height:1.0mm Min.

FEATURES:

Double blades design to trim the extra long leads automatically and with additional brushing system. The effective cutting area up to 420mm.

The PCB residues after soldering and leads adhere on the boards after trimming can be easily removed by the equipped brush system.

Equipped with adjustable warp correction device in which correct the warp condition of PCB before soldering process.

The inlet and outlet bridge conveyors are optional accessory which are flexible for connecting the wave soldering machine and conveyor line.

The Tungsten Carbide Blade is excluded in the machine.
