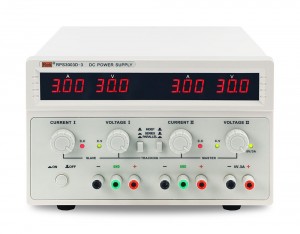

Rek RPS3005D-3 DC Power Supply (0~5A, 30V)

Input Power: AC 220V±10% 50Hz

Humiture

Operating Temperature:-10℃~40℃ RH<80%

Storage Temperature:-10℃~40℃ RH<80%

Ouput Mode: Double

Fixed Output With 5V/3A: Y

Output Voltage: DC 0~30V

Output Current: 0~5A

Display: Three Digital Display

Regulated Voltage State

Voltage Regulation≤0.01%+2mV

Load Regulation≤0.01%+2mV

Noise≤1mVrms( Effective Value)

Ripple

Regulated Current State:

Current Regulation≤0.1%+3mA

Load Regulation≤0.2%+3mA

Noise≤2mArms(Effective Value)

Display Resolution: Current:10mA Voltage:100mV

Display Accuracy: 3-Digit LED Digital Display±1%±1word

Dimension(Mm): 364×260×170mm

Weight(KG): 9.9KG
