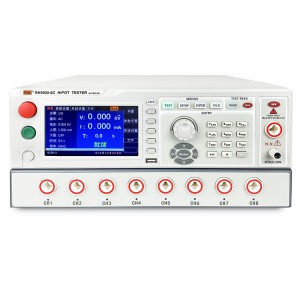

Rek RK9920A-8C Hipot Testers (8CH)

Scan interface: 8 road

Pressure test

The output voltage

AC: 0.05kV-5.00kV ±2%

DC: 0.05kV-6.00kV ±2%

Current test range

AC: 0 — 20mA ±(2% of reading + 5 digits)

DC: 0 — 10mA ±(2% of reading + 5 digits)

fast discharge: Automatic discharge after test (DCW)

Arc Detection

Measuring rangeAC/DC: 1mA-20mA

General parameters

Voltage rise time: 0.1S～999.9S

Test time setting: 0.2S～999.9S

Voltage fall time: 0.1S～999.9S

Waiting time (IR): 0.2S～999.9S

time precision: ±(1%+0.1S)

interface: Handler, RS232, RS485, USB DEVICE, USB HOST

Working temperature and humidity: 10℃～40℃,≤90%RH

Power Requirements: 90～121V AC (60Hz) or 198～242V AC (50Hz)

Power consumption: <400VA

Standard: RK00001 power cord, wire interface transfer driver CD, RS232 communication cable RK00002, RS232 to USB cable RK00003, USB to square port cable, RK8N+ high voltage rod, connecting cable RK00006, 16G U disk (instruction manual), RK26003A tester, RK26003B test line

Optional: RK00031 USB to RS485 female serial cable industrial-grade cable length 1.5 meters host computer

Weight (net weight): 19.75KG

Dimensions (H×D×L): 174mm×450mm×352mm
