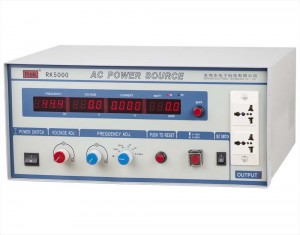

Rek RK5000 AC Power Source (500VA)

Capacity: 500VA

Circuit Mode: Mode Of IGBT/SPWM

Input

Number Of Phases: 1ψ2W

Voltage: 220V±10%

Frequency: 47Hz-63Hz

Output

Number Of Phases: 1ψ2W

Voltage: Low=0-150VAC High=0-300VAC

Frequency: 45-70Hz、50Hz、60Hz、2F、4F、400Hz

The Maximum Current

L=120V: 4.2A

H=240V: 2.1A

Rate Of Load Voltage Stabilization: 1%

Waveform Distortion: 1%

Frequency Stability: 0.01%

LED Display: Voltage V、 Current A、Frequency F、Power W

Voltage Resolution: 0.1V

Frequency Resolution: 0.1Hz

Curren Tresolution: 0.001A

Protection: Over Current,Over Temperature,Overload,Short Circuit

Weight: 24Kg

Volume(Mm): 420×420×190mm

Operating Environment: 0℃～40℃ ≤85% RH

Accessories: Power Line
