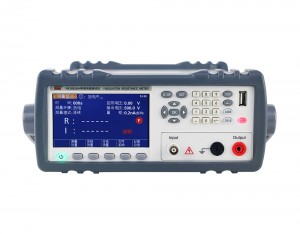

Rek RK2683BN Insulation Resistance Tester (10KΩ～5TΩ)

Test resistance: 10KΩ～5TΩ

Test accuracy: I＞10nA ±2% I＜10nA ±5% I＜1nA ±10%

Output voltage

0.1-500V

＜10V 0.01Step adjustable

＞10V 0.1Step adjustable

Voltage accuracy: ±1%+0.5V

Display mode: 4.3-inch color LCD screen

Range mode: Manual / automatic

Measuring speed: Fast speed: 30 times / S; slow speed: 8 times / S

Sorting: The three block is qualified, the two gear is unqualified. Single point sorting and interval sorting can be selected.

Trigger: Internal trigger, manual trigger, external trigger, foot switch trigger

Waveform scanning: R-V、R-I Graph scan test function

Storage: Internal and external U disk of instrument

Standard interface: RS-232C interface Handler(PLC) interface USB HOST, USB DEVICE

Working environment: 10℃～40℃，≤80%RH

Power requirements: AC220V±10%，50Hz/60Hz±5%

Weight: 4kg

External dimension: 380*255*105mm

Accessories: Power line, test line, RS232, USB communication line; Handler junction box, foot switch (optional)
