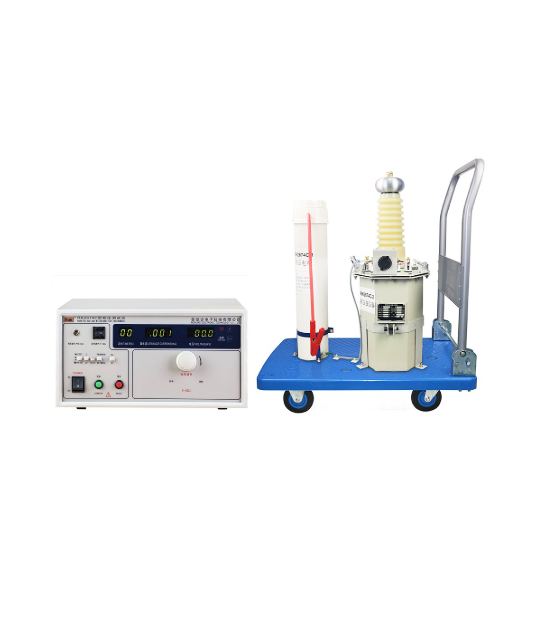

Rek RK2674C Withstand Voltage Tester (AC/DC：0～50kV, AC:0～2/20/40mA, DC:0～2/20mA)

AC

Output voltage: 0～50kV

Test current: 0～2/20/40mA

DC

Output voltage: 0～50kV

Test current: 0～2/20mA

Test accuracy: ±(5%+3 characters)

Test time: 1～99s±1%

Transformer capacity: 2000VA

PLC interface: -

Power supply requirements: AC220V±10% 50Hz/60Hz

Working environment: Temperature: (0-40)℃ Humidity ≤75%RH

Appearance style: Seperate

Dimensions

(DxWxH):

⑴375*279*196mm

⑵695*475*835mm

Weight: ⑴12.05Kg ⑵63.14kg

Accessories: High voltage test wire, ground wire, power wire, high voltage discharge rod, connecting wire

Optional: RK101 Series Inspection Box
