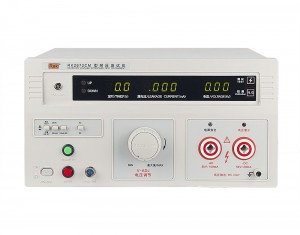

Rek RK2672CM Hipot tester (AC/DC: 5kV, AC: 2/20/100mA, DC：2/20mA)

AC

Output voltage: 0～5kV

Test current: 0～2/20/100mA

DC

Output voltage: 0～5kV

Test current: 0～2/20mA

Test accuracy: ±(5%+3 characters)

Test time: 0.0s～999s 0.0=continuous test

Transformer capacity: 500VA

PLC interface: Optional

Power supply requirements: AC: 220V±10% 50Hz/60Hz±3Hz

Working environment: Temperature: (0-40)℃ Humidity ≤75%RH

Dimensions (DxWxH): 407*378*193mm

Weight: 20.1kg

Accessories: High voltage test line, high voltage rod, grounding line, power line

Optional: RK8N+, PLC interface, RK-16G, RK101 withstand voltage inspection box
