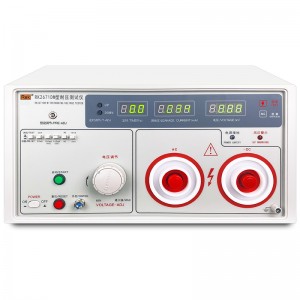

Rek RK2671DM Hipot tester (AC/DC: 10.00kV, 100mA)

ACW

Output voltage range: 0.00～10.00kV

maximum(power)output: 1000VA(10.0kV 100mA)

Maximum rated current: 100mA

Current gear: 2mA、20mA、100mA

discharge waveform: sine wave

Output waveform distortion: ≤5%（No-load or pure resistance load）

testing time: 0.0S-999S 0=continuous test

DCW

Output voltage range: 0.00～10.00kV

maximum(power)output: 1000VA(10.0kV 100mA)

Maximum rated current: 100mA

Current gear: 2mA、20mA、100mA

discharge waveform: sine wave

testing time: 0.0S-999S 0=continuous test

voltmeter

scope: 0.00～10.00kV

accuracy: ±（5% + 3 Words）

resolution ratio: 10V

Displays the values: root mean square value

Ammeter

measuring range

Range1：0.1mA～2mA；

Range 2：2mA～20mA

Range 3：20mA～100mA

resolution rati: 2mA档：1uA; 20mA档：10uA；100mA档：0.1mA

certainty of measurement: ± (5% + 3 words) within the range

Calculagraph

range: 0.0S-999S

minimum resolution: 0.1S

accuracy: ±（1%+50ms）

PLC interface: Optional

Remote control interface: standard

Overall volume(D×H×W): 530mm×230mm×454mm

weight: About the 44.7KG

Random standard accessories: Power line RK00018, RK00015 high voltage test line, RK26103 grounding line
