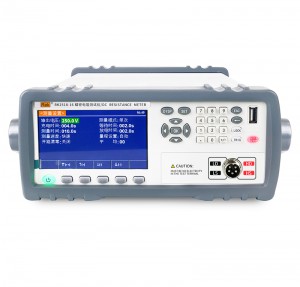

Rek RK2518-16 Multichannel DC resistance tester (10μΩ～200KΩ, 16CH)

Resistance Measurement

Measuring Range: 10μΩ～200KΩ

Resistance Range: Basic Accuracy 0.05%

Number Of Scanning Paths: 16 Way

Maximum Test Current: 500mA

Display

Display: 24 Bit Color, Resolution 480 * 272 True Color IPS LCD

Reading Digit: Four And A Half Digit Display

Measurement Function

Resistance Measurement Time:

Fast Speed: 40 Times / S

Medium Speed: 20 Times / S

Slow Speed: 12 Times / S

Test Side Configuration: Four Terminal

Measurement Mode: Sequential Scanning

Save Test Parameters: 5 Groups

Temperature Measurement

Measurement Parameters: PT1000: Accuracy 0.1 ℃

Display Range: -10℃-99.9℃

Comparator

Signal Output:HI/PASS/LO

News Ring: Pass / Fail / Close

Limit Setting Mode: Absolute Value Upper / Lower Limit; Percentage Upper / Lower Limit + Nominal Value

Other Parameters

Interface: USB HOST/USB DEVICE/RS232/HANDLER/RS485

Working Environment: Temperature 0 ℃～ 40 ℃ Humidity < 80% RH

Dimension: 361×107×264mm

Weight: Net Weight About 4kg

Accessories: Four Terminal Kelvin Test Clip, Temperature Probe, USB / 232 Communication Cable, Plug-In Terminal, Power Line
