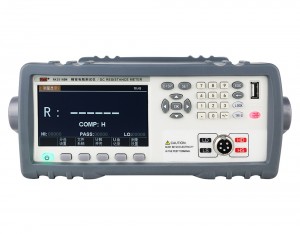

Rek RK2516BN DC resistance tester (10μΩ～20kΩ, 0.05%)

Measuring Range: 10μΩ～20kΩ

Test Accuracy: 0.05%

Maximum Test Current: 100mA

Display

Display: 24 Bit Color, Resolution 480 * 272 True Color IPS LCD

Number Of Readings: Four Half Digit Display Resistance Value

Measuring Function

Resistance Measurement Time

Fast Speed: 7ms

Slow: 40ms
Temperature Measurement Time: 100ms

Test Side Configuration: Four Terminal

Statistical Function: Quantity Statistics Of Upper / Lower Qualified Products

Save Test Parameters: 5 Groups

Comparator

Signal Output: HI/PASS1/PASS2/PASS3/LO/FAIL

Sound Of News: Pass / Fail / Close

Limit Setting Mode: Third Gear; Absolute Value Upper / Lower Limit; Percentage Upper / Lower Limit + Nominal Value

Other Parameters

Interface: USB HOST/RS232/HANDLER/RS485(Optional)

Working Environment: Temperature 0 ℃～ 40 ℃ Humidity < 80% RH

Size: 361×107×264mm

Weight: 3.6kg

Accessories: Four Terminal Kelvin Test Clip, Power Cord
