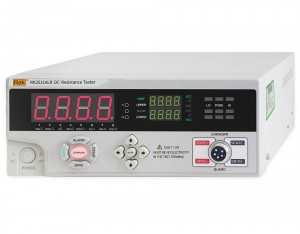

Rek RK2511BL DC resistance tester (0.1mΩ – 50 . 00KΩ)

Test Resistance Range: 0.01mΩ- 200.0KΩ

Test Accuracy:

500mΩ Range 0.1% ± 3 Words,

5Ω, 50Ω, 500Ω, 5KΩ Range 0 . 1 % ± 2 Words,

50KΩ Range 0 . 1% ± 3 words,

Test Current: 100mA 10mA1mA 100uA10uA

Test The Range: 500mΩ 5Ω 50Ω 500Ω 5kΩ 50kΩ

Resolution: 10 UΩ 10 0 UΩ 1 MΩ 10 MΩ 100mΩ 1Ω 1 0Ω 1 00

Speed:

Slow 3 Times Per Second

Fast 10 Times/Sec

Measuring Mode: Automatic, Hold

Screen: 0.8 Inch 4 Digit Tube

Calibration: Short-Circuit Zero At Full Scale

Messages: Pass, Pass, Fail

Test Side: Four-Terminal Testing

Comparator Sorting:

Pass Display IN

(PASS) Under Ultra-Non-Conforming Display LO (FA IL)

On Ultra-Non-Conforming Display HI (FAIL)

Humidity: 0℃- 40℃，≦75%RH

Power Supply: 100V-121 V，198V242V，47.5 -63Hz

Fuse Specifications: 0.5A 250V 1A 110V SLOW MELT

Power Consumption: ≦15VA

Dimensions: 280mm×97mm×217mm

Annex: RK0000 POWER CORD, RK26004A QUAD

End Test Fixture

Weight: 2.2kg
