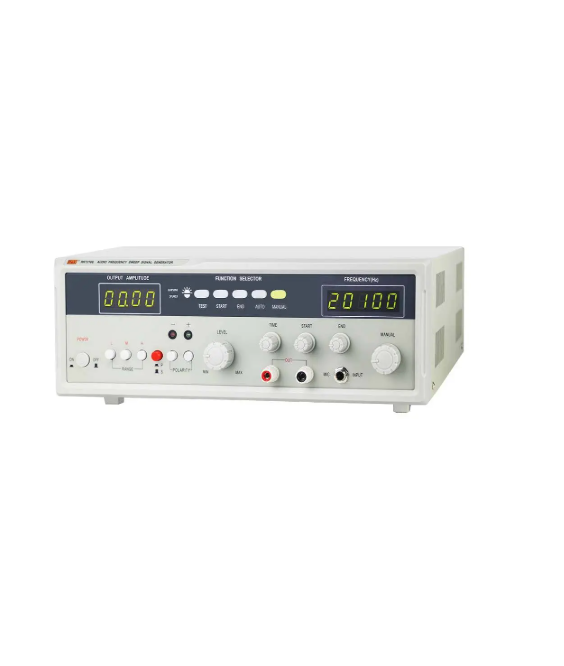

Rek RK1316E Audio Signal Generator (0.1Vrms–22Vrms(60W))

Test Range: 20 Hz～20 KHz

Resolving power: 1Hz

Output Amplitude Voltage: 0.1～22Vrms

Resolution: 0.01Vrms （F≤20Khz）

Output Voltage Accuracy: ±1% +3 words

Sine Wave Distortion: ＜0.2%(20W,8Ω Loading,Rest≤0.8%)

Output Power: 60W

Pulse Width: 0.4（±0.2ms）

Pulse Amplitude: 10VPP (H High、W Medium、L Low)

Sensor Microphone: Condenser Microphone

Test Sensitivity: High Grade ≥ 25cm, Medium Grade ≤ 25cm Speaker

Discriminating Speed: 0.2s

Speakers, Headphones: Speakers/Headphones

Mode Of Sweep Frequency: Logarithm

Sweep Frequency Ratio: 1:1000

Sweep Frequency Time: 0.1s～20s

Output Mode: Power Output,Synchronous Output

Work Environment: 220V±10％, 50Hz±5％

Exterior Dimension: 375×368×135mm

Weight: 8kg
