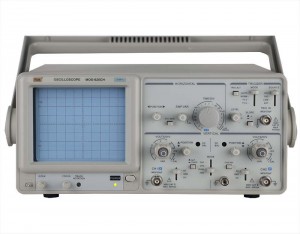

Rek MOS-620CH Analog Oscilloscope (DC-20MHz, 17.5ns)

Range Of Frequency: DC-20MHz

Range Of Frequency Channel: 8×10div（1div=1cm）

Partial Upper Verticality

Display Mode: Ch1，Ch2，DUAL，ADD

Deflection Factor: 5mV/Div To 5V/Div±3%（1mV/Div±5%）

Sensitivity : 5mV～5V/DIV,It Divided Into 10 Files According To The 1-2-5 Sequence.

Rising Time: About 17.5ns

Input Impedance: About 1MΩ/25pF

Polarity Selection: ±CH2

The Maximum Input Voltage

When The Probe Is Setted At 1:1,The Maximum Effective Reading Value Is 40Vp-P (14Vrms Sine Wave)

When The Probe Is Setted At 10:1,The Maximum Effective Reading Value Is 40Vp-P (14Vrms Sine Wave)

Horizontal Deflection

Display Mode: 1,10,X-Y

Time Base: 0.2μs/Div～0.2s/Div

Sweep Frequency Width: ×10

Accuracy: ±Accuracy3%

Corrected Waveform: Square Wave,Frequency 1KHz20% Voltage:2Vp-P±2%

Input Impedance: 1MΩ

Exterior Dimension: 310×150×455mm

Weight: 8kg

Accessory: Probe,Power Line
