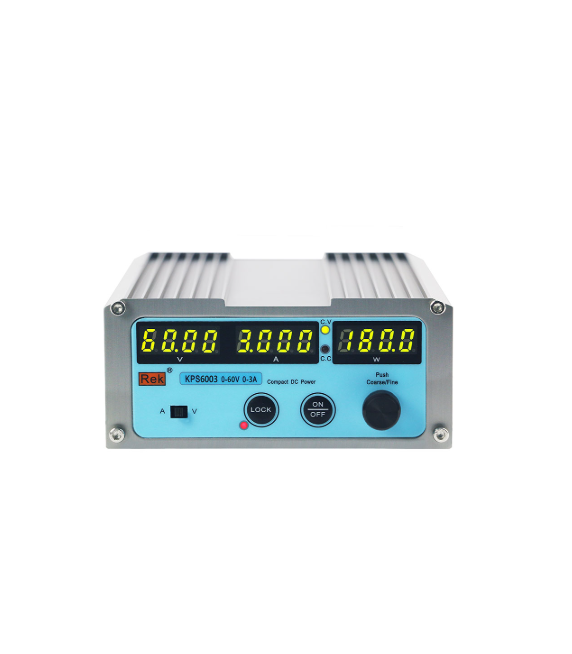

Rek KPS6003 Switching Power Supply (60V, 3A)

Output Voltage: 0-60V

Output current: 0-3A

Efficiency (220Vac, Full Load): ≥88%

Full Load Input Current (220Vac): ≤1.5A

No Load Input Current (220Vac): ≤100mA

Voltmeter Accuracy: ≤0.3%+1digit

Ammeter Accuracy: ≤0.3%+2digits

Constant Voltage State

Load Regulation Rate (0-100%): ≤30mV

Input Voltage Regulation Rate (198-264vac): ≤10mV

Ripple Noise (Peak-Peak): ≤50mV

Ripple Noise (R.M.S): ≤5mV

Setting Accuracy: ≤0.3%+10mV

Instantaneous Response Time （50%-10% Rated Load）: ≤1.0ms

Constant Current State

Load Regulation （90%-10% Rated Voltage）: ≤50mA

Input Voltage Regulation Rate (198-264Vac): ≤20mA

Ripple Current Noise (Peak-Peak): ≤30mAp-P

Setting Accuracy: ≤0.3%+20mA

Input Voltage Switch: 115/230Vac

Operating Frequency Range: 45-65HZ

Dimensions (Width X Height X Depth): 120×55×168mm

Net Weight: 0.75KG
