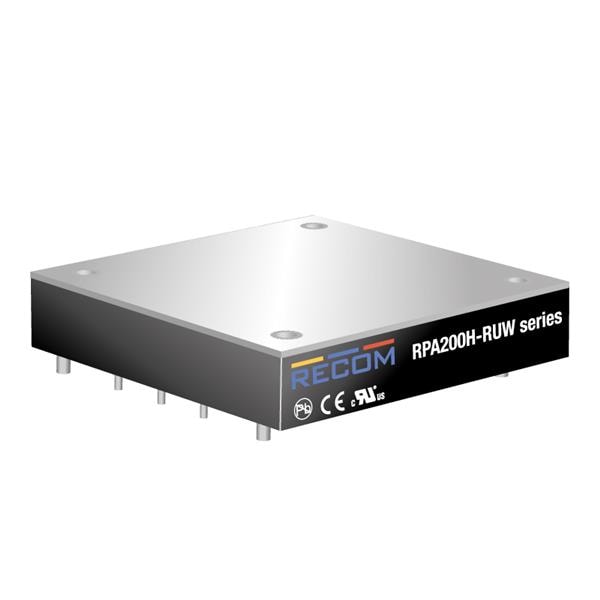

RECOM Power RPA200H-11048SRUW/N Isolated 200W 16.5-140Vin 48Vout 4.2A Half B

Width: 60.6 mm

Height: 13 mm

Length: 63.1 mm

Industry: Industrial

Application: High Voltage Battery and Railway Rolling Stock Applications

Unit Weight: 85 g

Output Power: 200 W

Input Voltage: 16.5 V to 140 V

Mounting Style: Chassis

Isolation Voltage: 3 kV

Number of Outputs: 1 Output

Input Voltage - Max: 140 V

Input Voltage - Min: 16.5 V

Input Voltage, Nominal: 110 V

Output Current-Channel 1: 4.2 A

Output Voltage-Channel 1: 48 V

Maximum Operating Temperature: + 93.5 C

Minimum Operating Temperature: - 40 C
