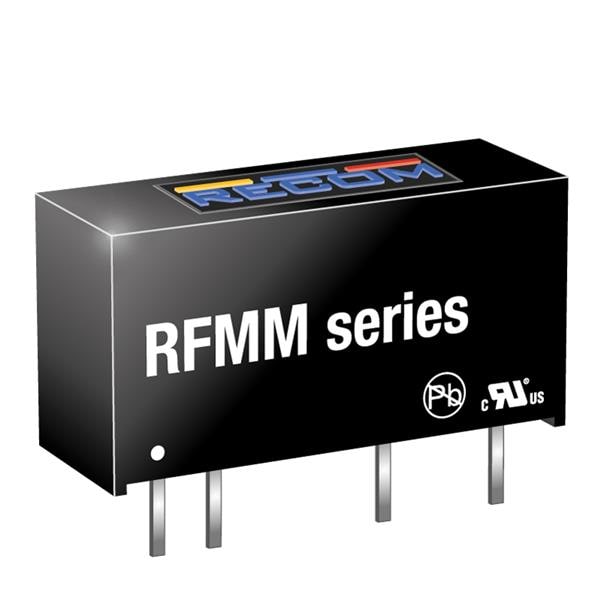

RECOM Power RFMM-0505S Isolated 1W 5Vin 5Vout 200mA SIP7

Width: 7.05 mm (0.278 in)

Height: 10.2 mm (0.402 in)

Length: 19.65 mm (0.774 in)

Industry: Industrial

Compliance: REACH; RoHS; UL

Efficiency: 80%

Application: Cost Sensitive General Purpose Power Isolation and Voltage Matching Applications

Unit Weight: 3.584 g

Output Power: 1 W

Input Voltage: 4.5 V to 5.5 V

Mounting Style: Through Hole

Isolation Voltage: 4 kV

Number of Outputs: 1 Output

Input Voltage - Max: 5.5 V

Input Voltage - Min: 4.5 V

Input Voltage, Nominal: 5 V

Output Current-Channel 1: 200 mA

Output Voltage-Channel 1: 5 V

Maximum Operating Temperature: + 85 C

Minimum Operating Temperature: - 40 C
