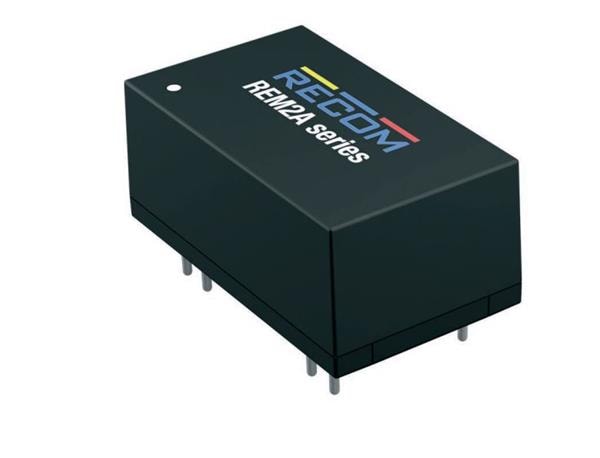

RECOM Power REM2A-4815D Isolated 2W 36-75Vin +/-15Vout +/-67mA

Width: 14.4 mm (0.567 in)

Height: 10.2 mm (0.402 in)

Length: 24.3 mm (0.957 in)

Industry: Medical, Industrial

Dimensions: 24.3 mm x 14.4 mm x 10.2 mm

Application: Building and Home Automation, Industrial and Automation, Medical, Test and Measurements

Output Power: 2 W

Input Voltage: 36 VDC to 75 VDC

Mounting Style: Through Hole

Isolation Voltage: 5 kV

Number of Outputs: 2 Output

Input Voltage - Max: 75 V

Input Voltage - Min: 36 V

Output Current-Channel 1: 67 mA

Output Current-Channel 2: 67 mA

Output Voltage-Channel 1: 15 V

Output Voltage-Channel 2: - 15 V

Maximum Operating Temperature: + 105 C

Minimum Operating Temperature: - 40 C
