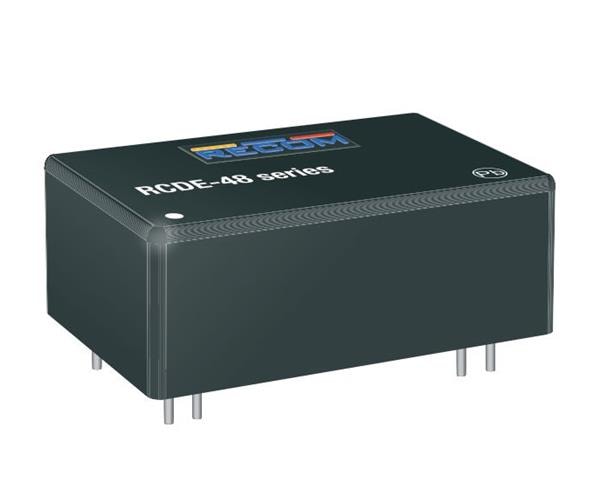

RECOM Power RCDE-48-0.70 High Power 6-60Vi 3-52Vo 700mA Reg

Dimming: With Dimming

Features: PWM Dimming, Constant Current

Topology: Buck

Output Type: Constant Current

Unit Weight: 16 g

Input Voltage: 6 V to 60 V

Mounting Style: Through Hole

Output Current: 700 mA

Output Voltage: 3 V to 52 V

Number of Outputs: 1 Output

Number of Channels: 1 Channel

Input Voltage - Max: 60 V

Input Voltage - Min: 6 V

Operating Frequency: 550 kHz

Supply Current - Max: 5 mA

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 40 C
