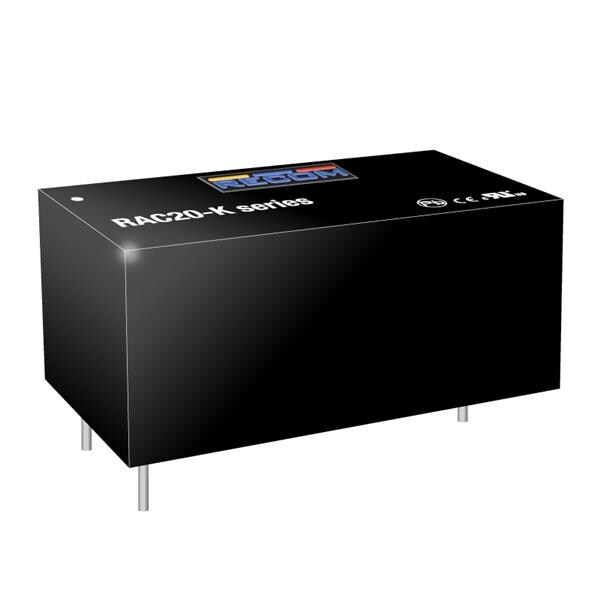

RECOM Power RAC20-05SK AC/DC Output Modules 20W 85-264Vin 5Vout 4A

Width: 27.4 mm

Height: 23 mm

Length: 52.5 mm

Industry: Industrial

Compliance: CAN/CSA; CE; ERP; IEC; RoHS; UL

Efficiency: 84%

Unit Weight: 60 g

Output Power: 20 W

Input Voltage: 85 VAC to 264 VAC

Mounting Style: PCB

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Isolation Voltage: 3 kVAC

Number of Outputs: 1 Output

Input Voltage - Max: 264 VAC

Input Voltage - Min: 85 VAC

Open Frame/Enclosed: Enclosed

Standard Packaging Size: 2 x 1

Output Current-Channel 1: 4 A

Output Voltage-Channel 1: 5 VDC

Maximum Operating Temperature: + 55 C

Minimum Operating Temperature: - 40 C
