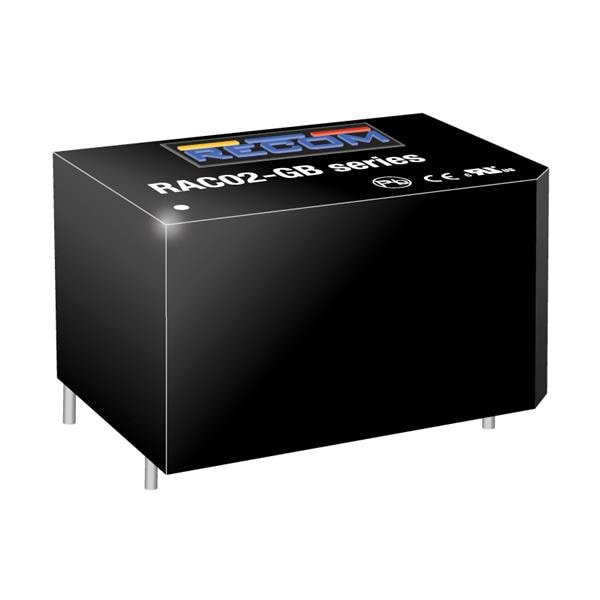

RECOM Power RAC02-05SGB AC/DC Output Modules 2W 85-264Vin 5Vout 400mA

Width: 22.2 mm

Height: 19 mm

Length: 33.7 mm

Industry: Industrial

Compliance: CAN/CSA; EAC; ERP; IEC; RoHS; UL

Dimensions: 33.7 mm x 22.2 mm x 19 mm

Efficiency: 63%

Unit Weight: 12 g

Output Power: 2 W

Input Voltage: 85 VAC to 264 VAC

Mounting Style: PCB

Input Frequency: 47 Hz to 63 Hz

Load Regulation: Regulated

Isolation Voltage: 3 kVAC

Number of Outputs: 1 Output

Input Voltage - Max: 264 VAC

Input Voltage - Min: 85 VAC

Open Frame/Enclosed: Enclosed

Output Current-Channel 1: 400 mA

Output Voltage-Channel 1: 5 VDC

Maximum Operating Temperature: + 70 C

Minimum Operating Temperature: - 25 C
